Interfacing Modules

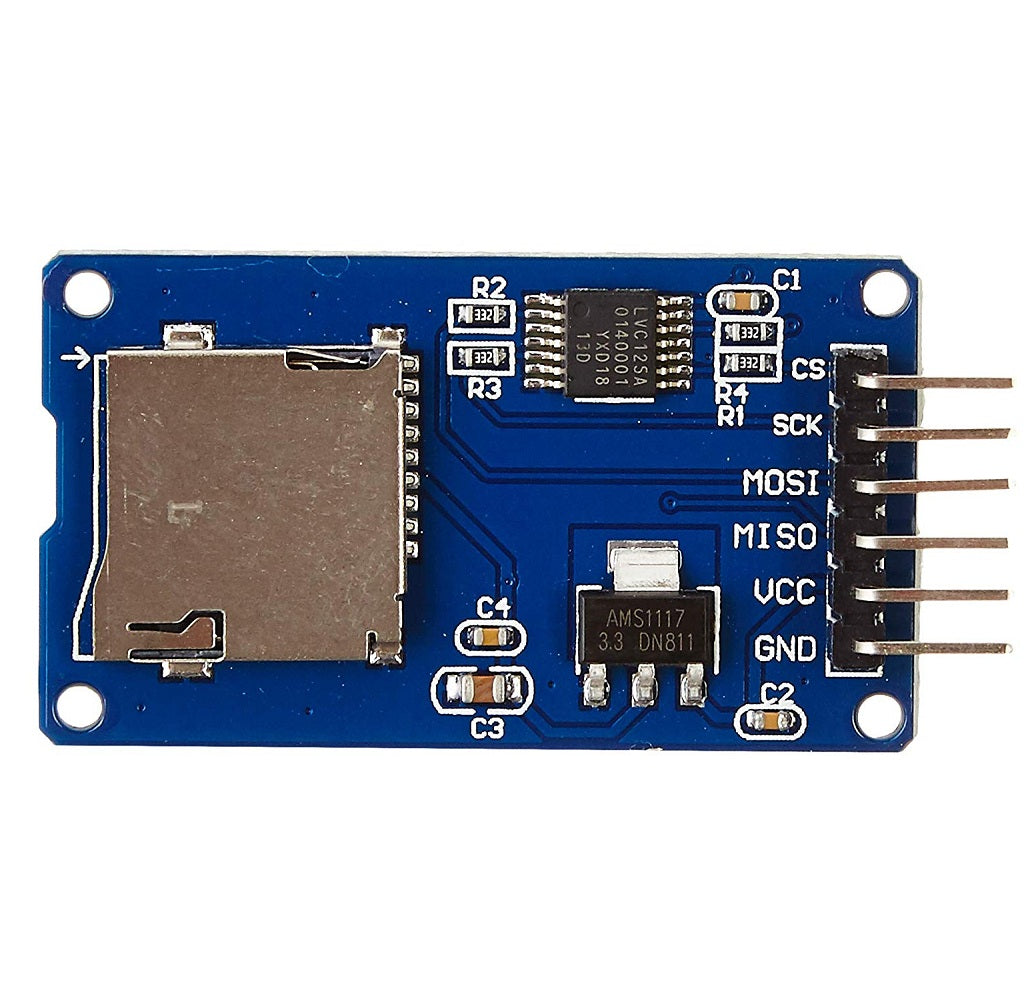

Micro SD Card Reader Module also called Micro SD Adaptor is designed for dual I/O voltages. This Module is a simple solution for transferring data to and from a standard SD card. The pinout is directly compatible with Arduino, but can also be used...

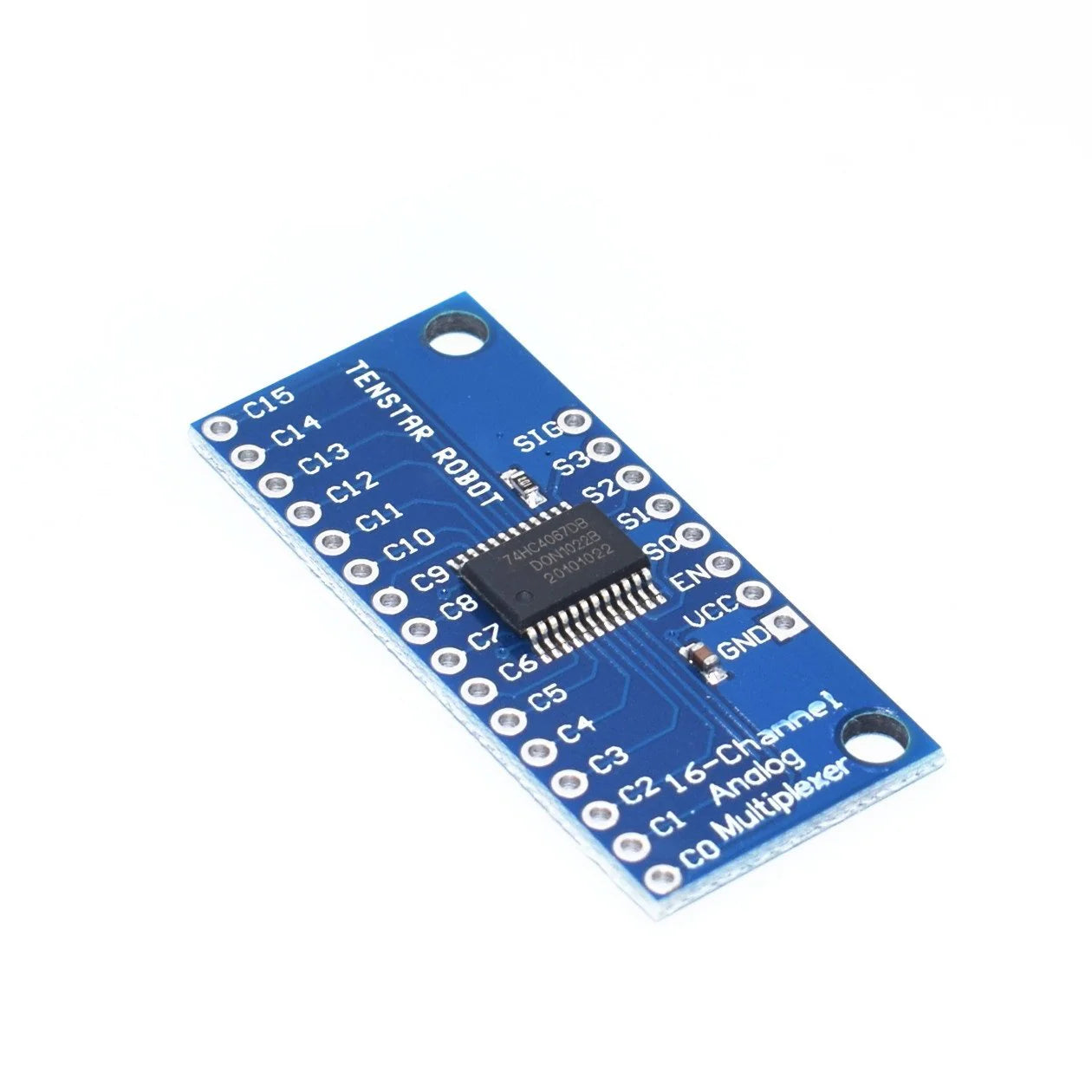

CD74HP4067 High Speed CMOS 16-Channel Analog/Digital Multiplexer Breakout Module The CD74HP4067 High-Speed CMOS 16-Channel Analog/Digital Multiplexer Breakout Module serves as a breakout board for the versatile 16-Channel Analog/Digital Multiplexer. This chip acts akin to a rotary switch, internally directing the common pin (COM in...

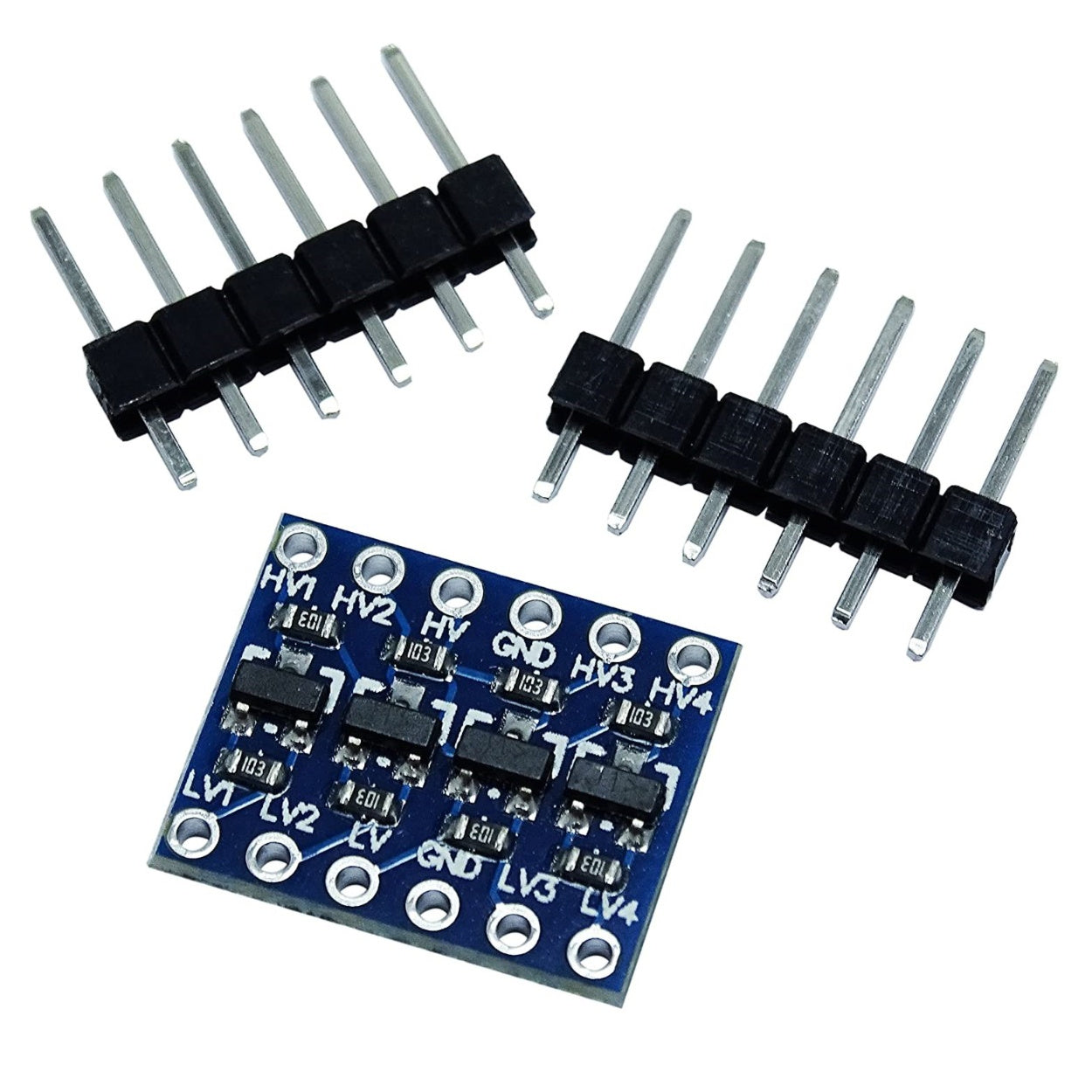

This Level Converter- 4 Channel features four high speed bi-directional 4 channels, allowing for safe and easy communication between devices operating at different logic levels. The logic level converter circuit convert signals as low as 1.8 V to as high as 5 V and...

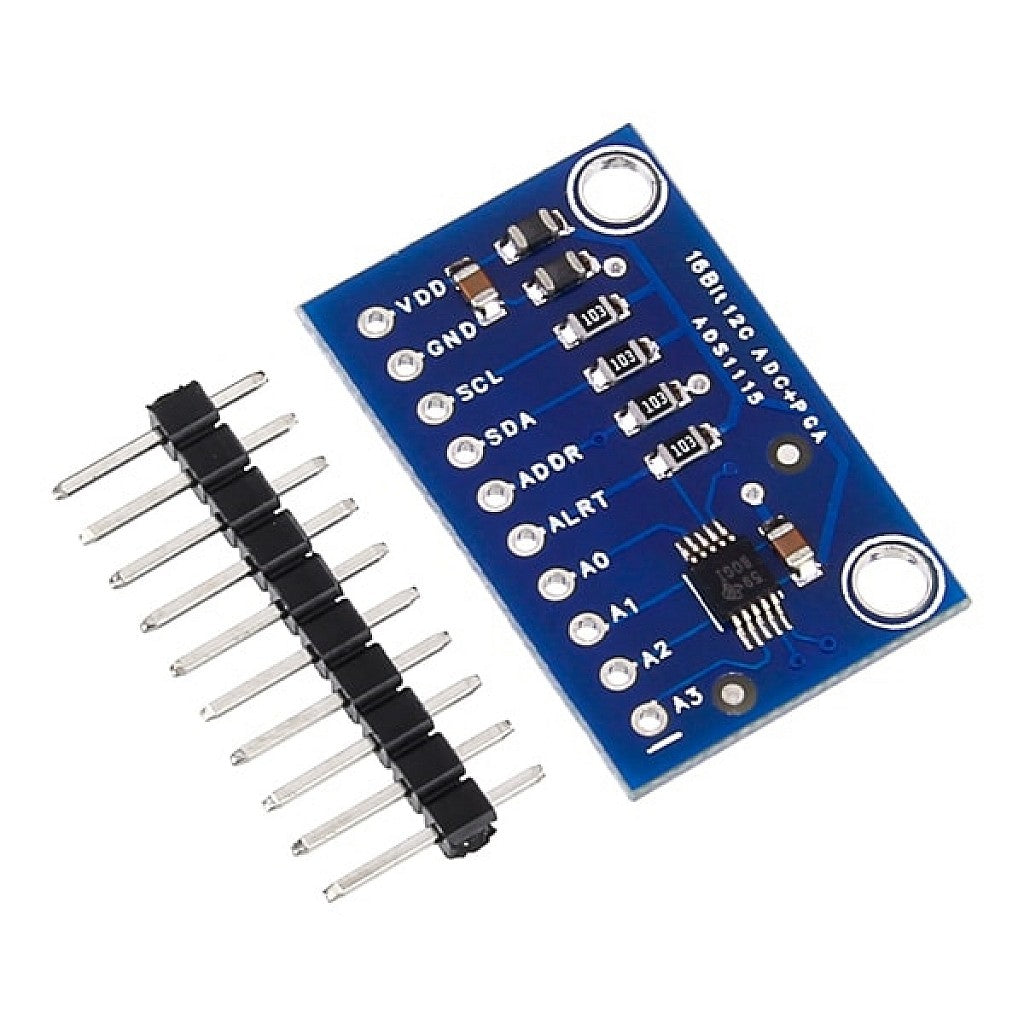

For microcontrollers without an analog-to-digital converter or when you want a higher-precision ADC, the ADS1115 provides 16-bit precision at 860 samples/second over I2C. The chip can be configured as 4 single-end input channels or two differential channels. ADC also includes a programmable gain amplifier, up...

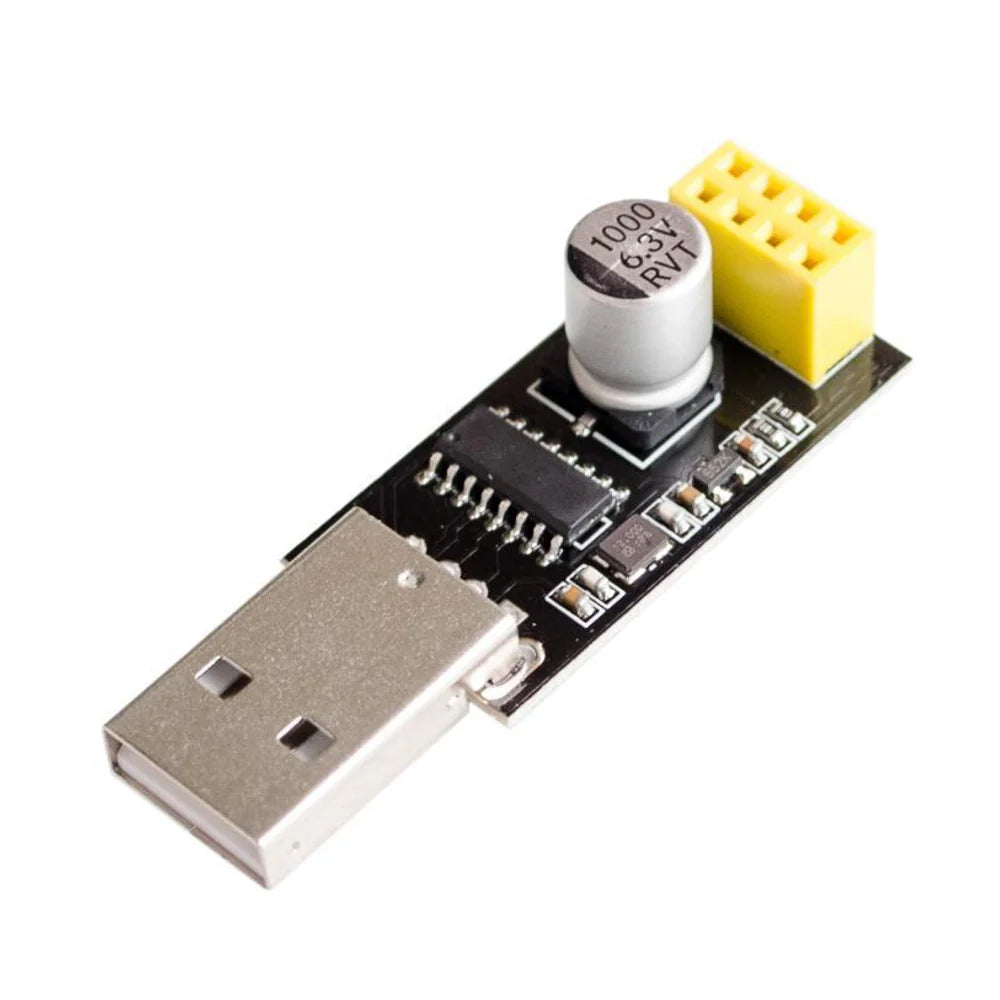

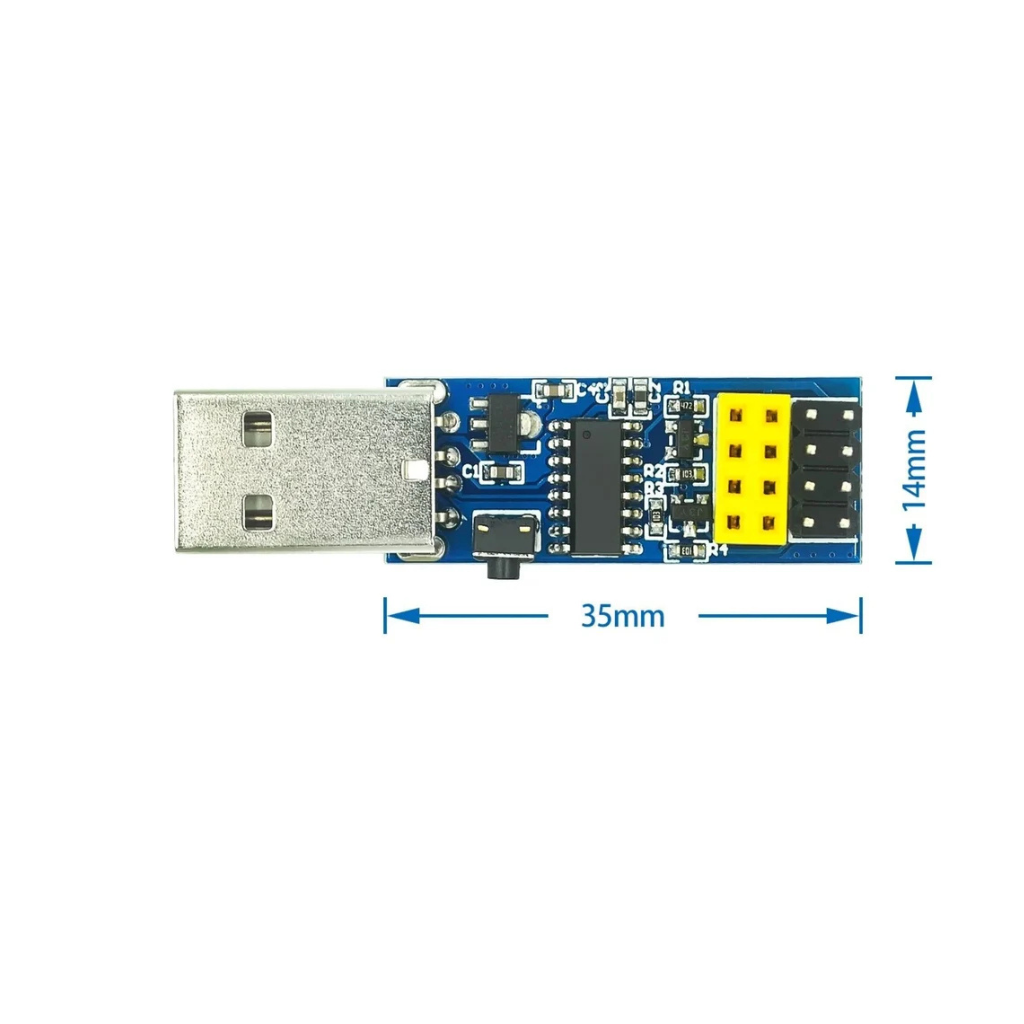

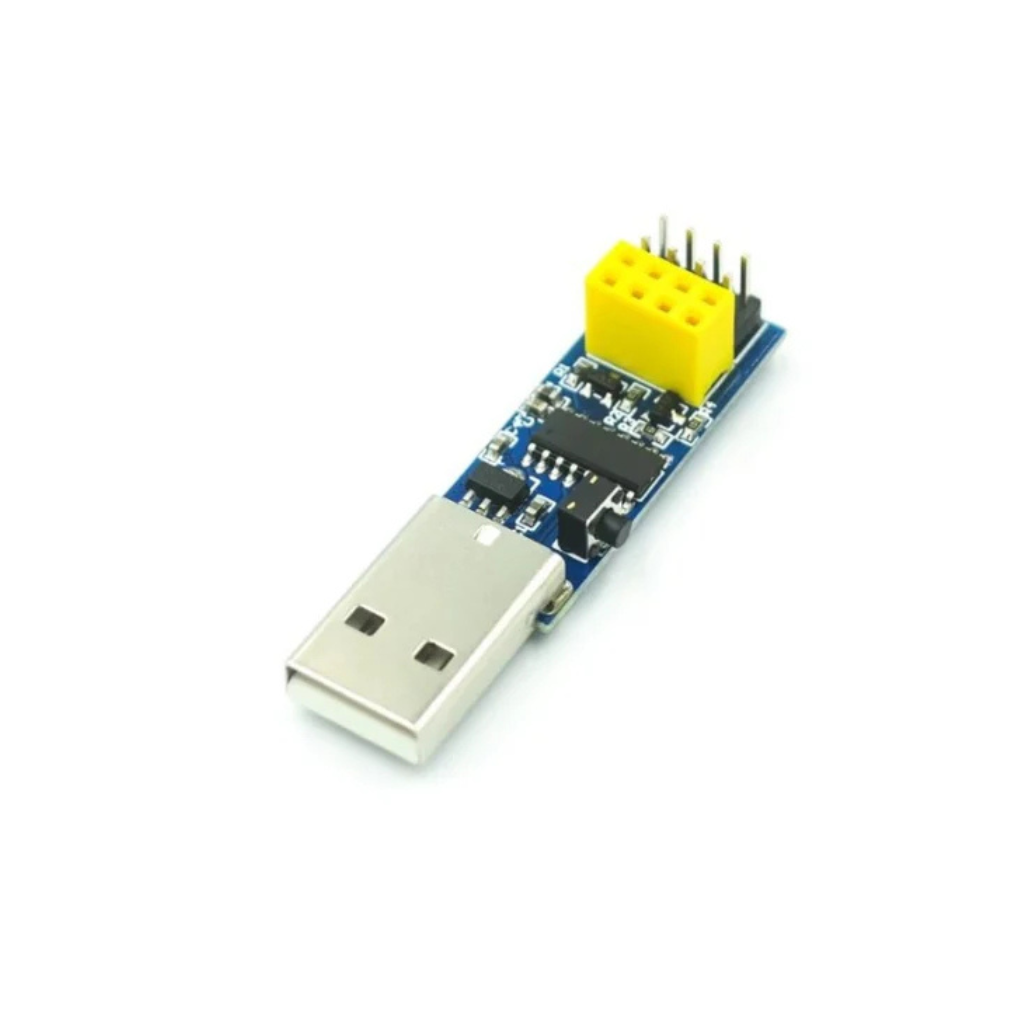

This USB to UART/ESP8266 Adapter Programmer for ESP-01 WiFi Modules with CH340G Chip converts the signal from a USB interface to a PC / laptop to match a serial module ESP8266. This converter module has CH340 chip which is reliable and with high performance....

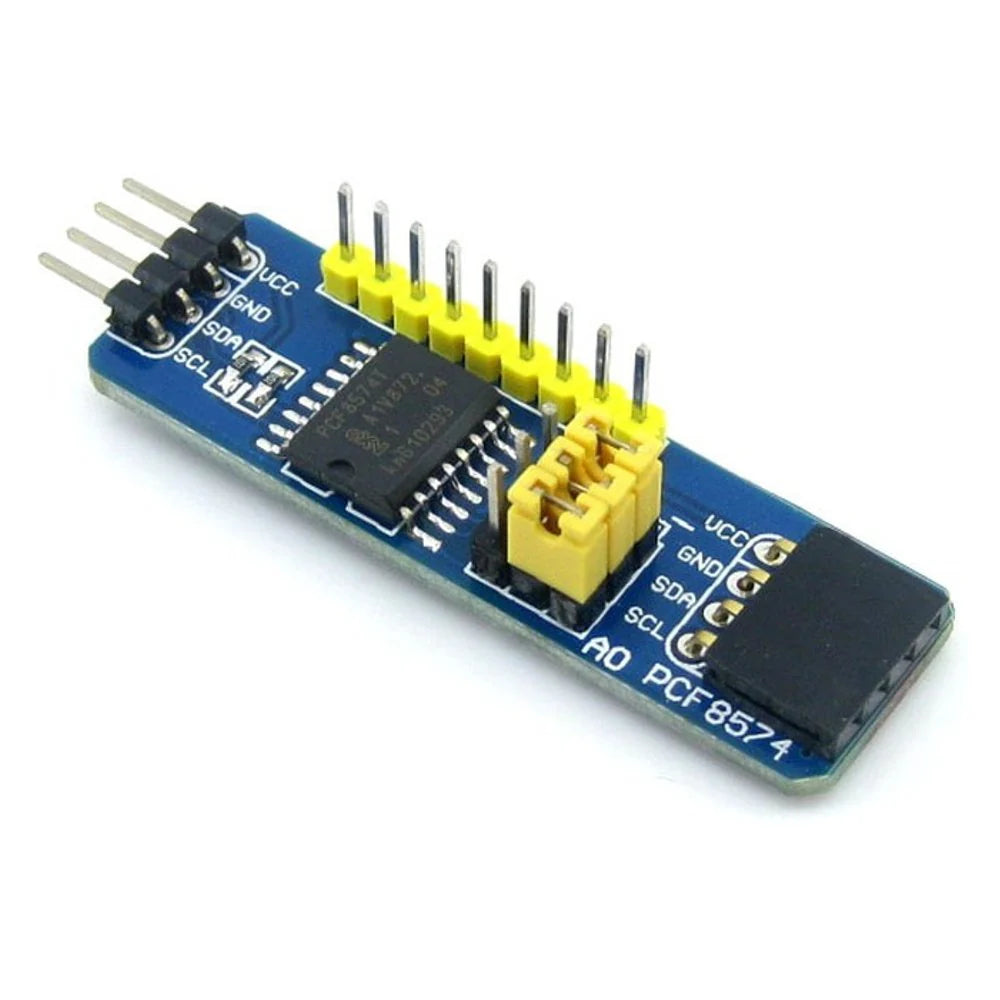

The PCF8574 IO Expansion Board is used as remote 8-bit I/O expander for I2C-bus. Up to 8 PCF8574, IO Expansion Board can be connected to the I2C-bus, providing up to 64 I/O ports. The PCF8574 IO Expansion Board features I2C pin header on one side, and I2C connector on the...

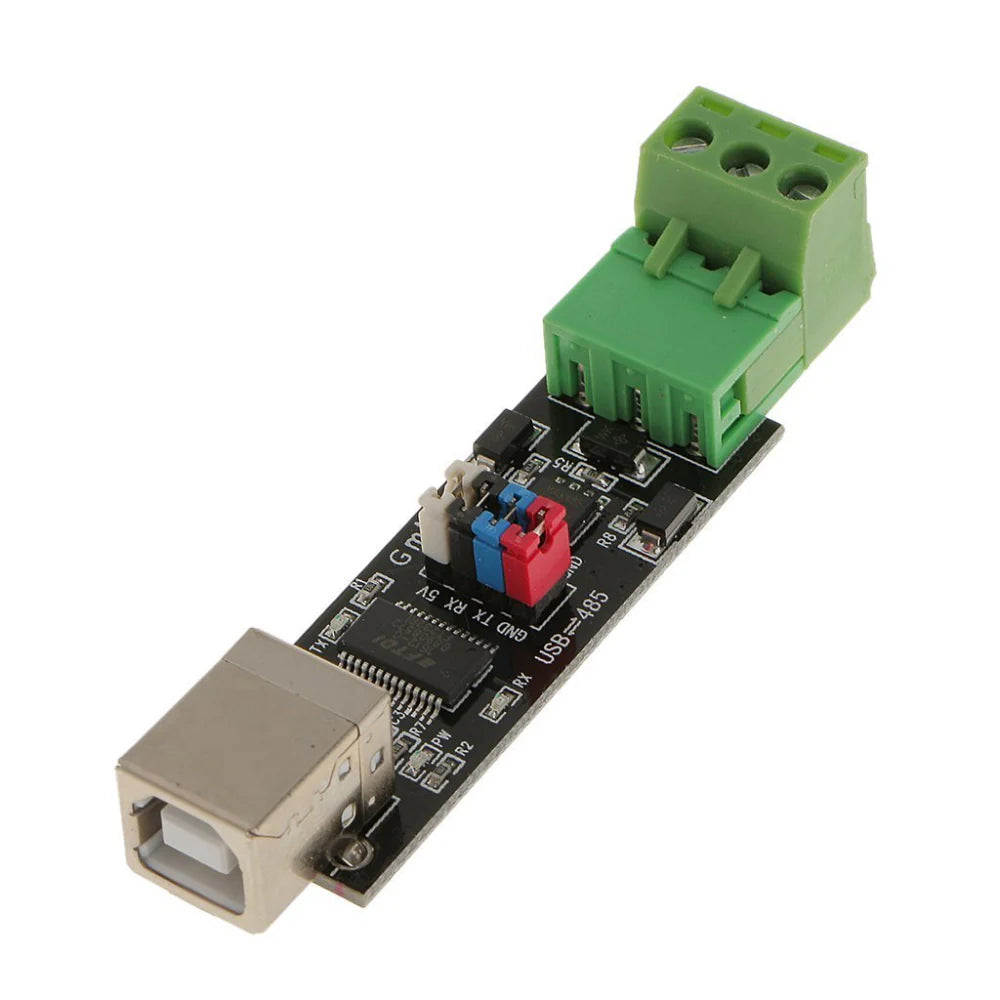

The USB to RS485 TTL Serial Converter Adapter FT232 is compliant with the USB 2.0 standard and is backward compatible, adhering to standard RS485 protocols. It features automatic data flow control for direction management, automatically distinguishing and controlling data transfer direction at baud rates ranging from 300 to 9216000 bps while detecting...

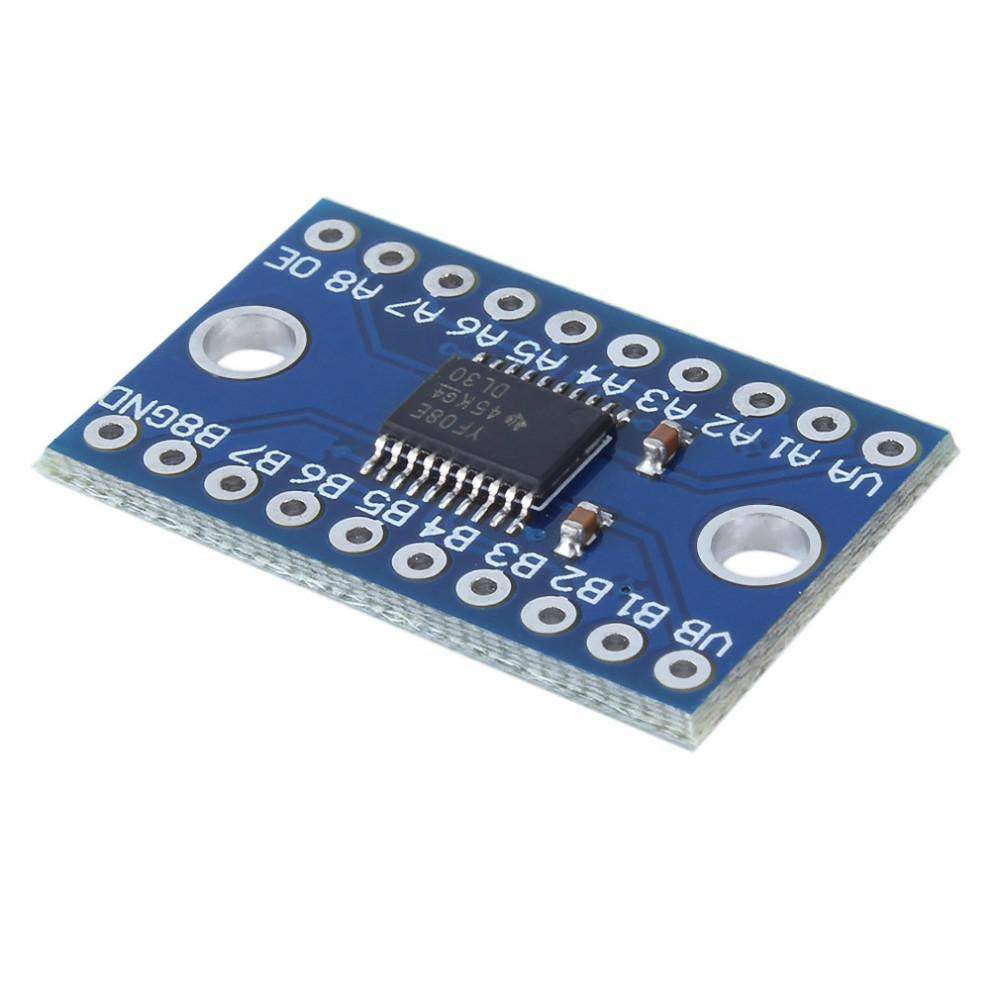

Product Description Introducing the TXS0108E High-Speed Full-Duplex 8 Channel Logic Level Converter, designed to address the challenges of connecting devices with different logic voltage levels. This bi-directional converter facilitates seamless translation between 1.8V, 3.3V, and 5V logic levels, ensuring compatibility across a wide range...

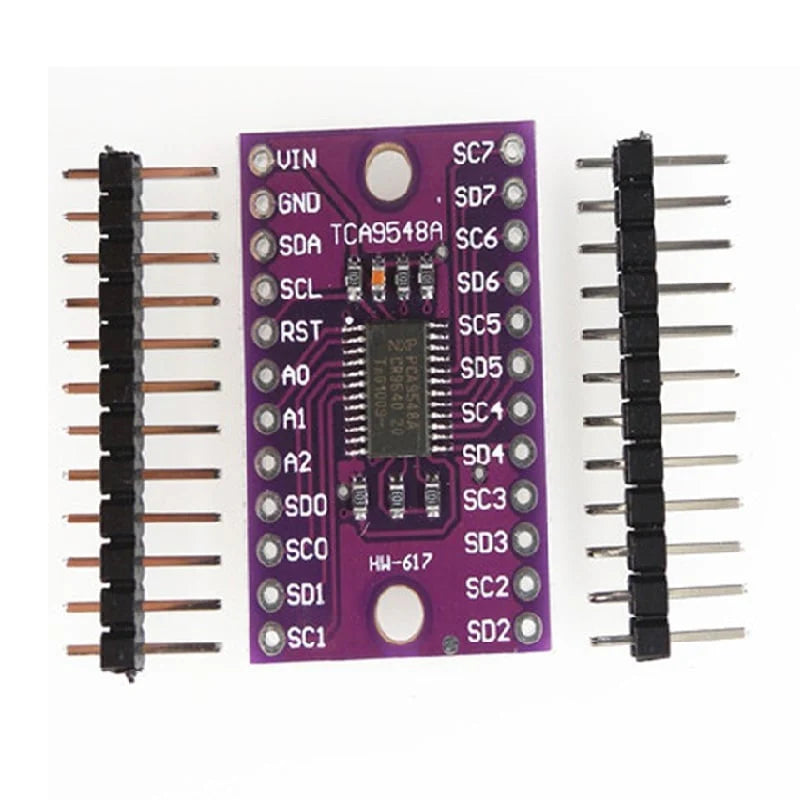

CJMCU TCA9548A I2C 8 Channel Multiple Extensions Development Board Features 5V Tolerant Inputs. Supports Hot Insertion. I2C Bus and SMBus Compatible. Low Standby Current. 1-to-8 Bidirectional Translating Switches. Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II. Active-Low Reset Input. Power Up With All...

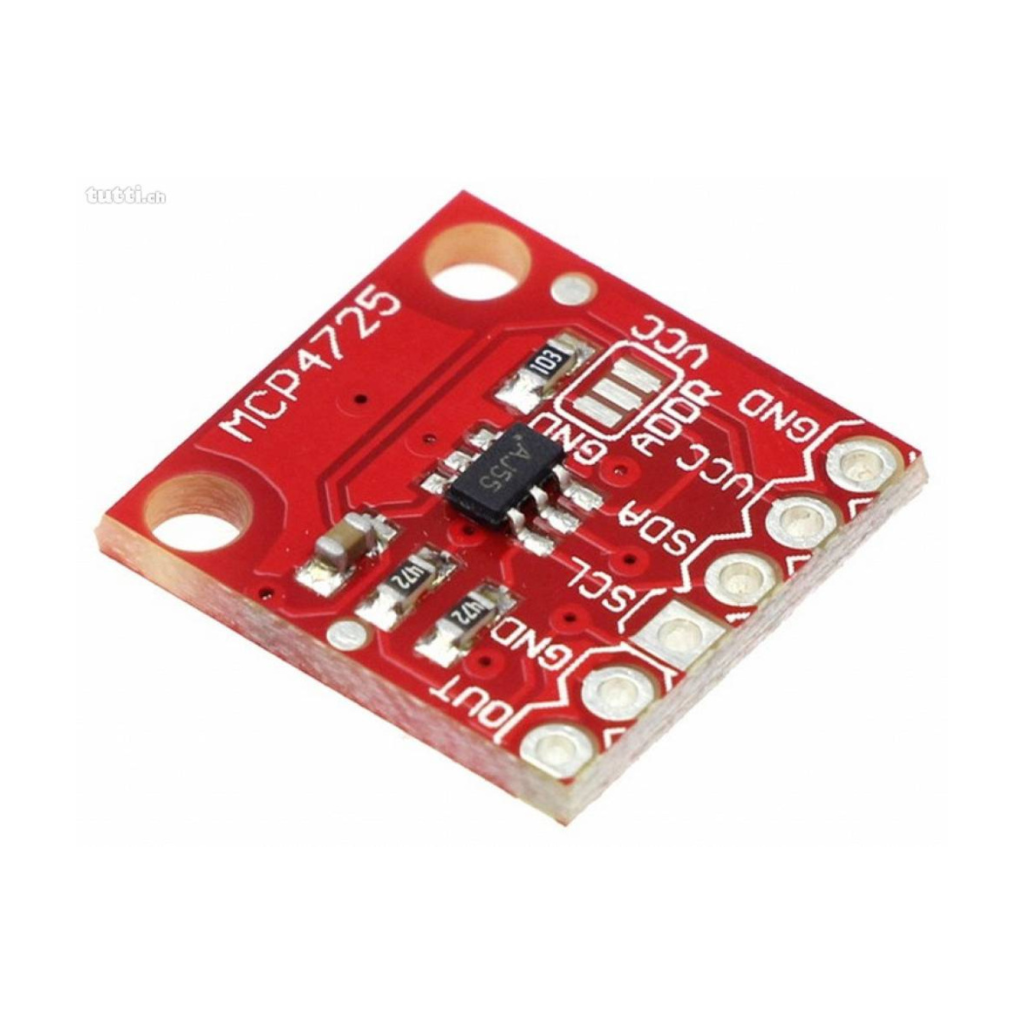

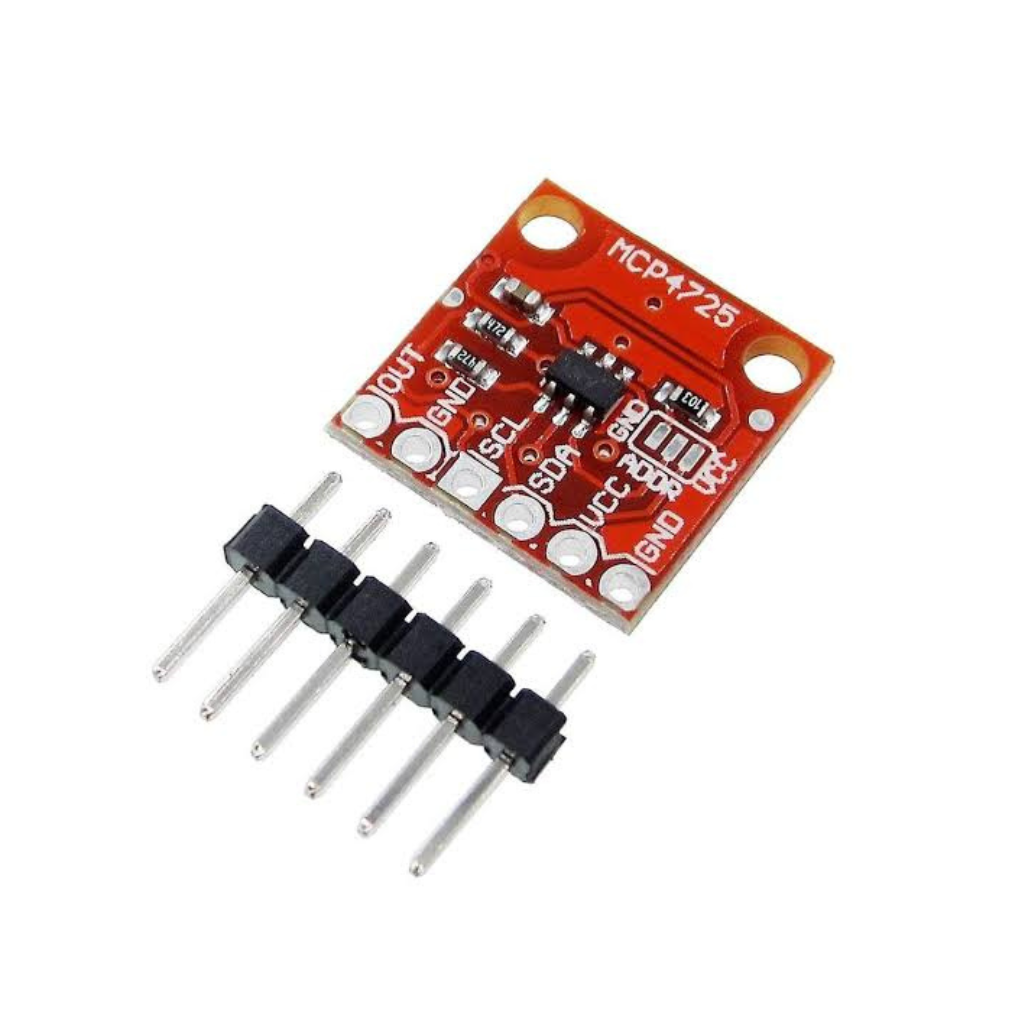

The MCP4725 I2C DAC Digital to Analog Converter Module is a high-precision 12-bit DAC (Digital-to-Analog Converter) designed for converting digital signals into analog voltage outputs. Featuring the MCP4725 DAC chip, this module communicates via the I2C interface, allowing easy integration with microcontrollers like Arduino,...

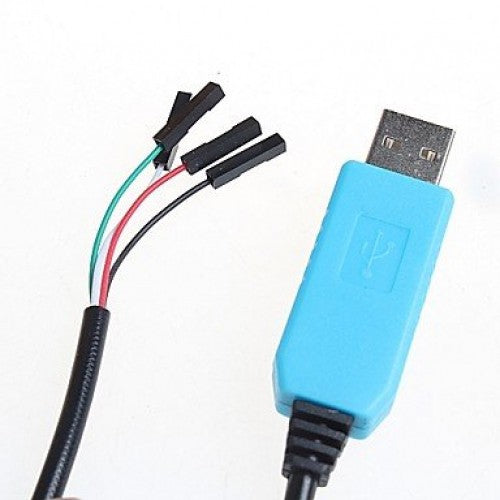

USB to TTL The PL2303 TA Download Cable is an essential USB to TTL/RS232 module that simplifies the process of connecting serial devices to computers. It is perfect for tasks involving data transfer between microcontrollers, routers, and other serial devices with seamless USB to serial...

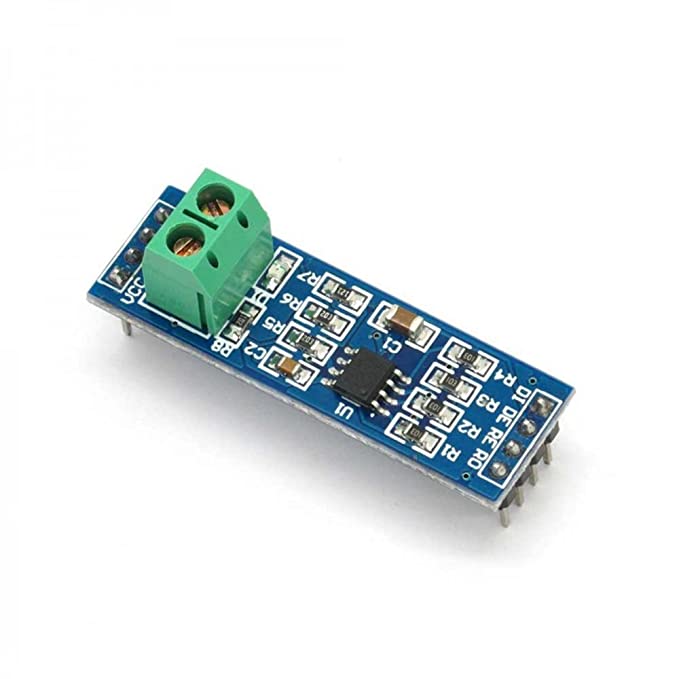

MAX485 TTL to RS485 Converter Module The MAX485 TTL To RS485 Module is a device that transforms TTL signals into RS485 signals. RS485 is a standard for differential communication that allows high-speed data transmission over long distances and in noisy environments. RS485 networks can...

CAN Communication Protocol is most used communication protocol used in the automotive systems where there are multiple components sending and receiving data simultaneously at a very high rate. Our normal non-automotive microcontrollers and development boards use either SPI or UART communication protocols which are best for short...

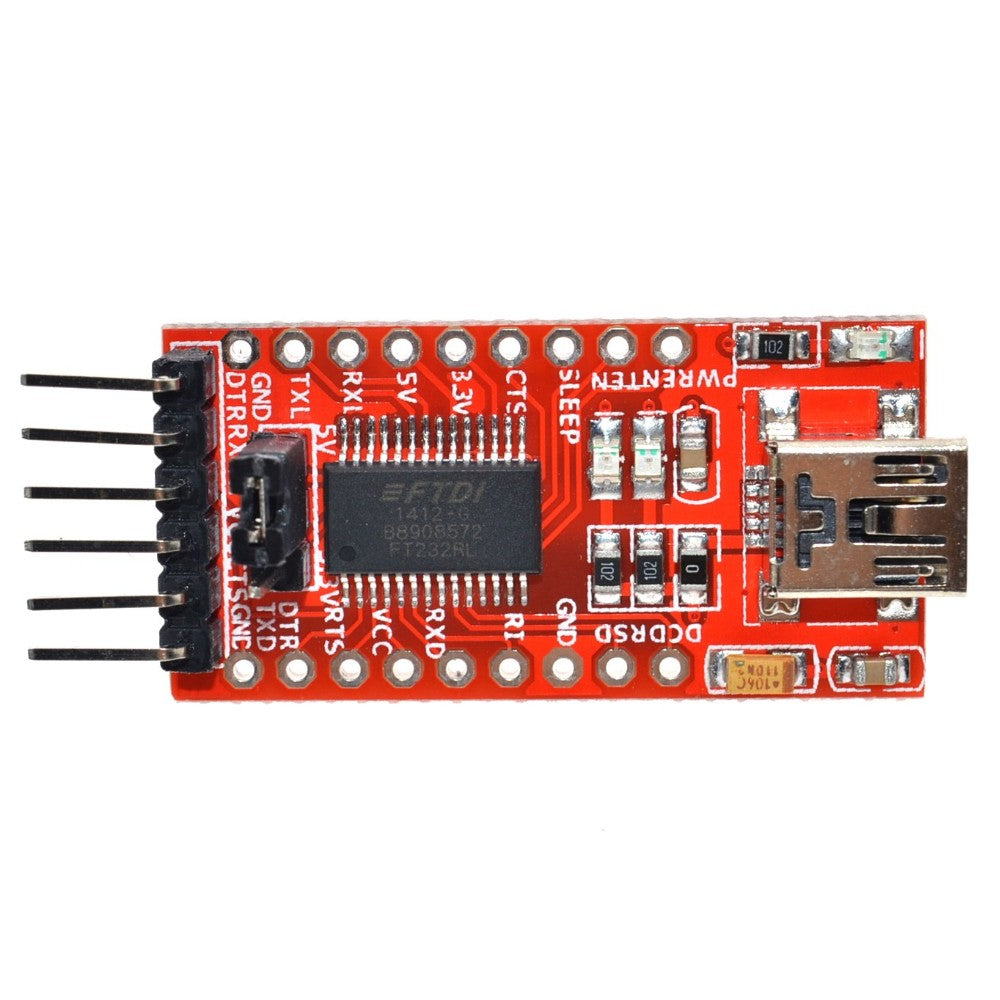

FT232RL USB TO UART TTL Module is a USB To Serial basic module based on the FTDI FT232RL USB to serial IC. The pinout of this board matches the FTDI cable to work with Arduino boards. This board has the DTR pin which allows...

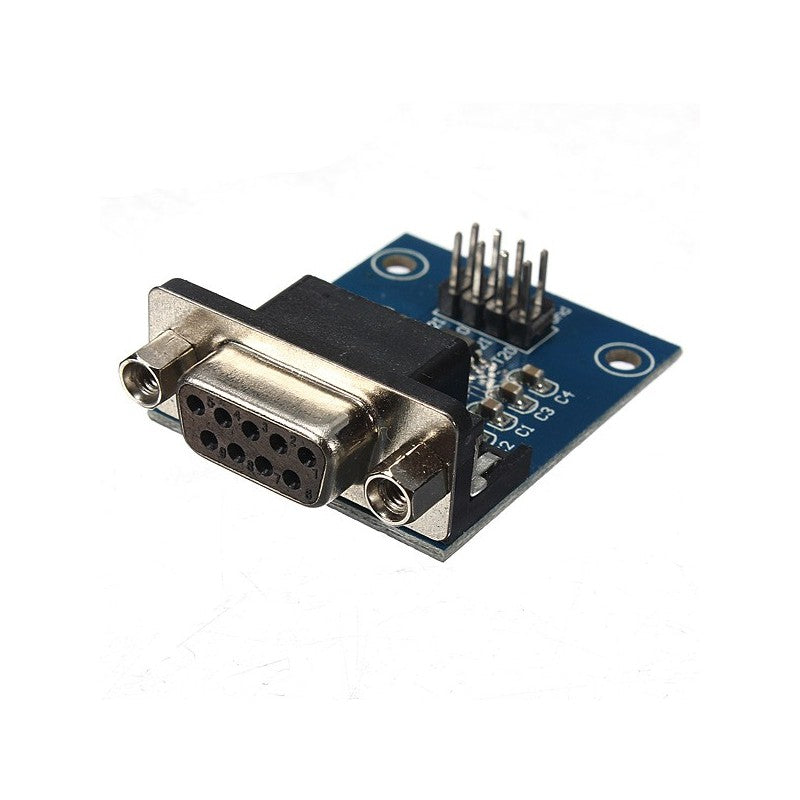

Introducing the RS232 to TTL Serial Interface Module, a versatile solution that uses the MAX3232 transceiver IC to enable seamless communication between TTL and RS232 ports. This module converts electrical signals between the two standards, making it an essential tool for a wide range...

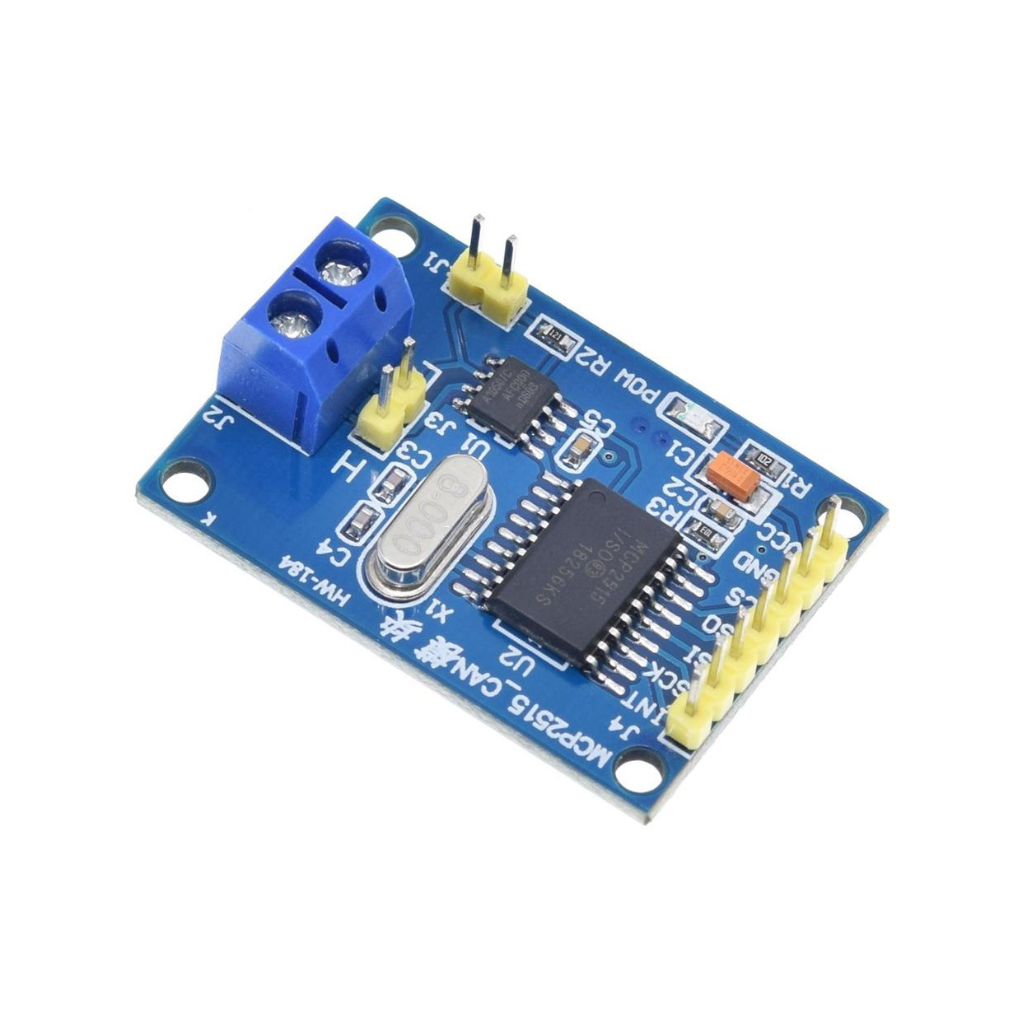

This is MCP2515 CAN Module TJA1050 Receiver SPI 51 Single Chip Program Routine Arduino with this module, you will find easy to control any CAN Bus device by SPI interface with your MCU, such as Arduino UNO and Compatible with Arduino based microcontroller projects....
