74 Series IC

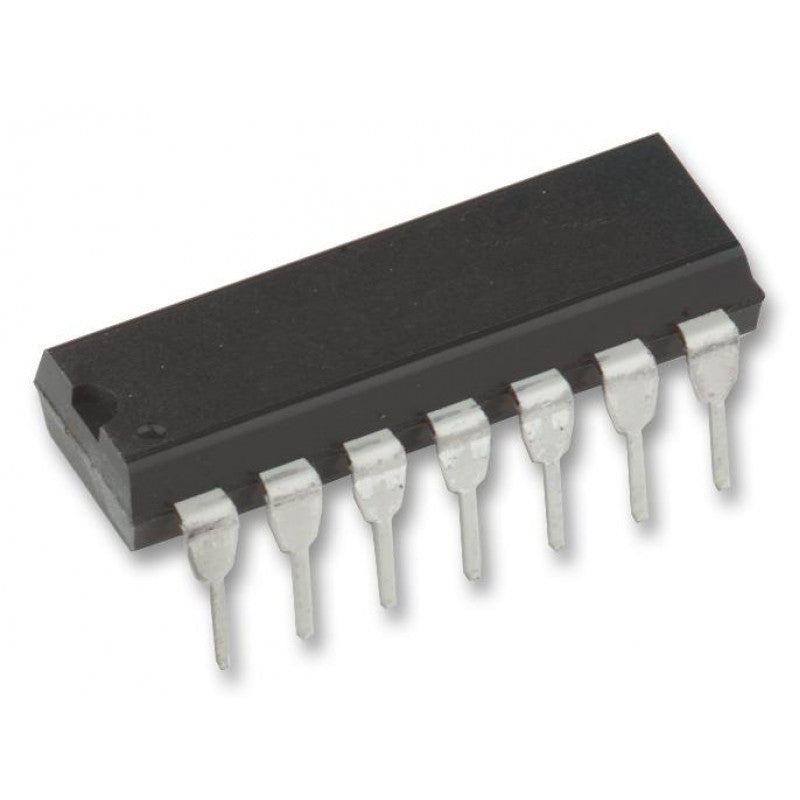

74HC04 is Hex Inverter NOT gate IC. It consists of six inverters which perform logical invert action. output of an inverter is complement of its input logic state i.e. when input is high its output is low and vice versa. device contains six independent...

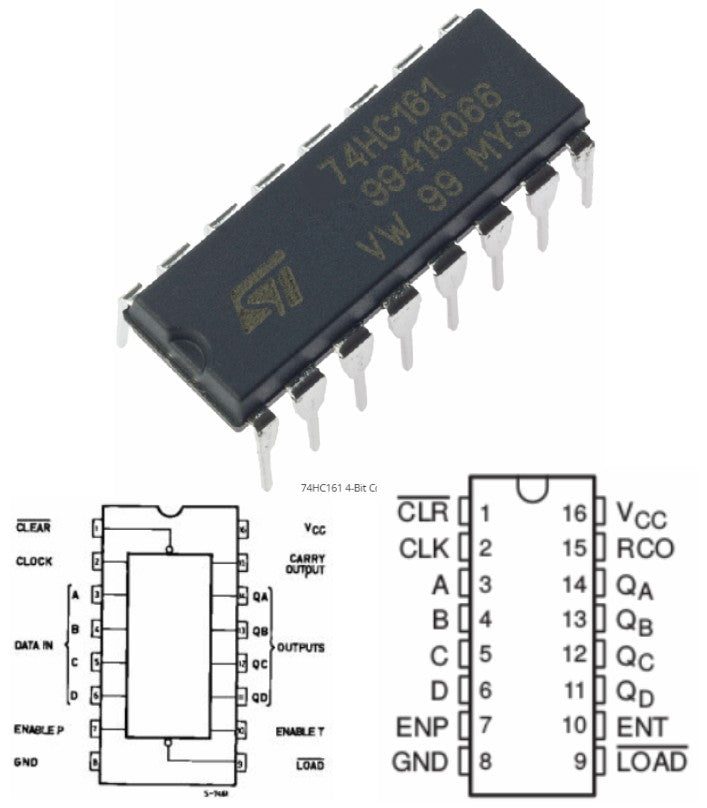

The 74HC161 is a synchronous presettable binary counter with an internal look-head carry. Synchronous operation is provided by having all flip-flops clocked simultaneously on the positive-going edge of the clock (CP). The outputs (Q0 to Q3) of the counters maybe preset HIGH or LOW....

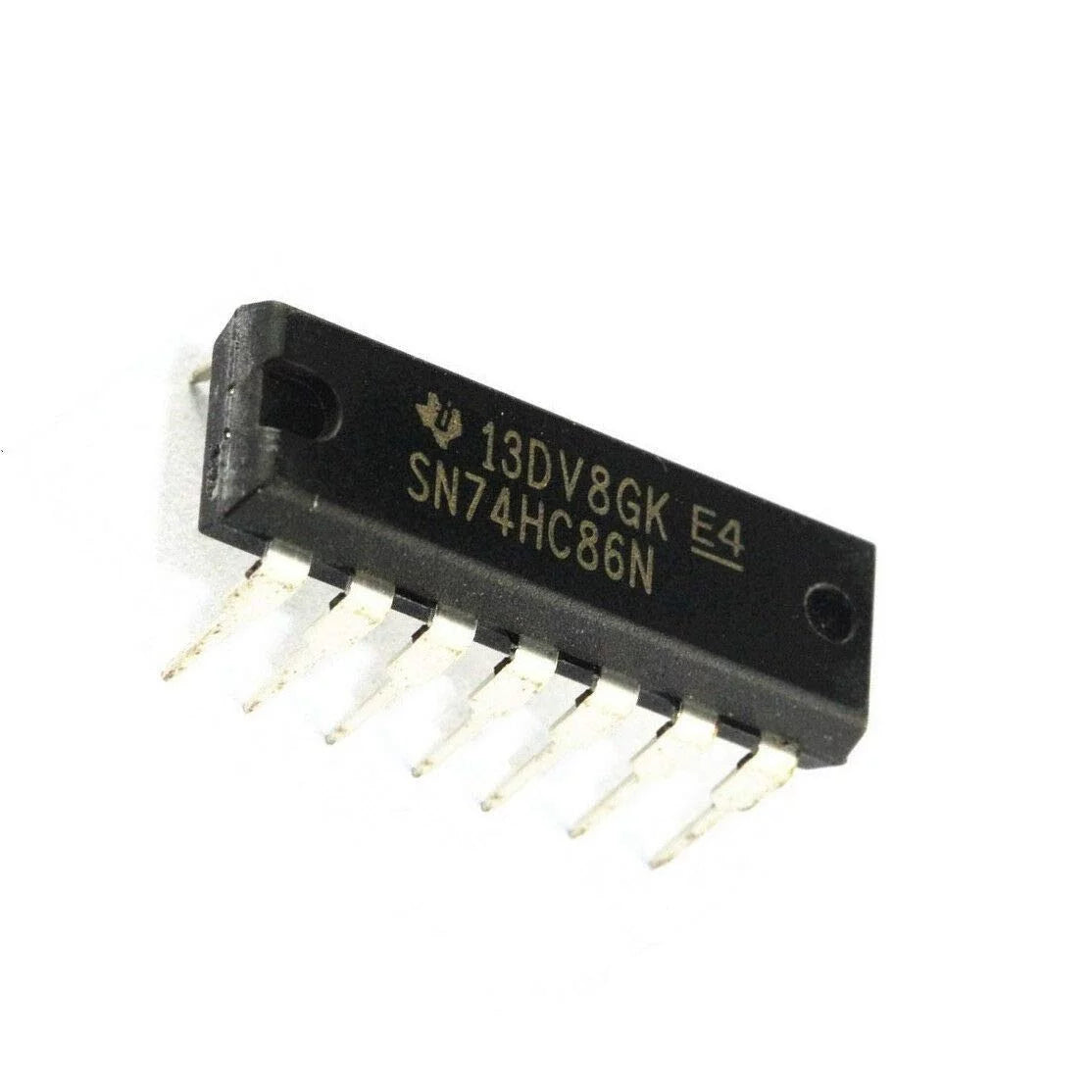

74HC86 is Quad 2-Input EXOR Gate 14 Pin IC. It is an advanced high speed CMOS 2−input Exclusive−OR gate fabricated with silicon gate CMOS technology. It achieves high speed operation similar to equivalent Bipolar Schottky TTL while maintaining CMOS low power dissipation. Internal circuit ...

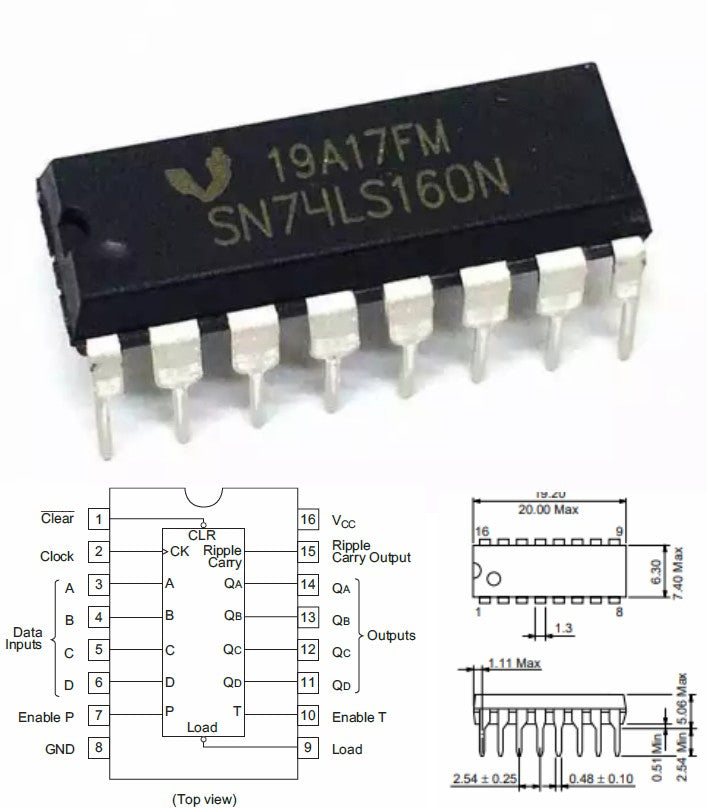

74HC160 is high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC160 are synchronous presettable decade counters which feature an internal look-ahead carry and can be used for...

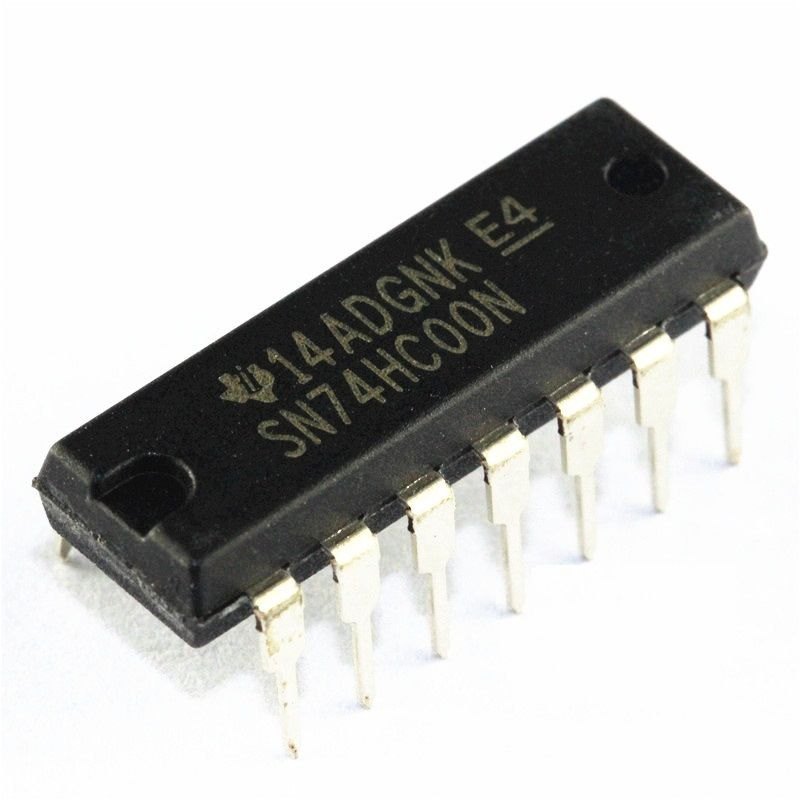

The 74HC00 is a 14 Pin Quad 2-Input NAND Gate IC. This device contains four independent gates each of which performs the logic NAND function. NAND gates utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power...

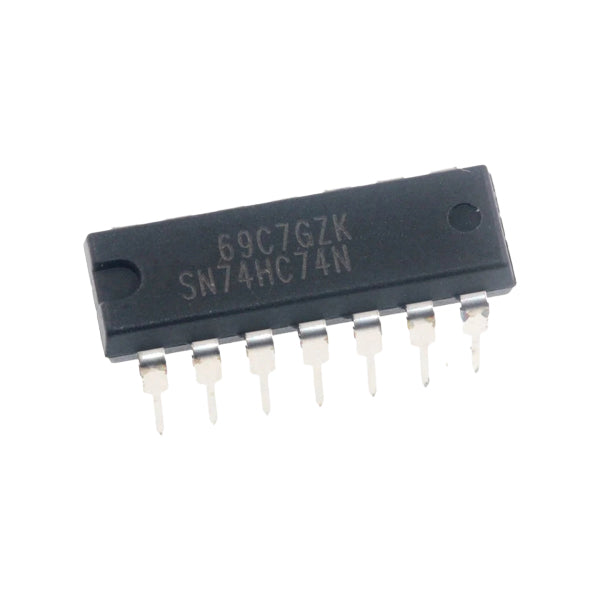

The 74LS74 device contains two independent positive-edge-triggered D flip-flops with complementary outputs. The information on the D input is accepted by the flip-flops on the positive going edge of the clock pulse. The triggering occurs at a voltage level and is not directly related...
