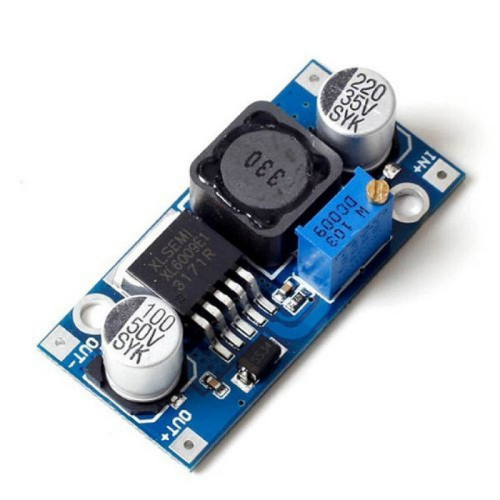

XL6009 5-35V DC-DC Adjustable Step-up Boost Power Converter Module

This XL6009 5-35V DC-DC Adjustable Step-up Boost Power Converter Module is a non-isolated step-up (boost) voltage converter featuring adjustable output voltage and high efficiency.

It equips 4A high-efficiency MOSFET switches, so as to provide a conversion efficiency of up to 94%. High switching frequency 400KHz, you can use a small -capacity filter capacitors that can achieve very good results, the ripple is smaller and smaller.

Features :

• The performance is much higher than LM2577.
• Non-isolated Boost converter.
• It has a non-synchronous rectifier.
• Small and Handy voltage regulator module.

Specifications:

• Input Voltage (V): 3 to 32
• Input Current(A): 4
• Output Voltage(V): 5 to 35
• Output Ripple(mV): 50
• Efficiency: 0.94
• Switching Frequency(KHz): 400
• Load Regulation: ±0.5%
• Voltage Regulation: ±0.5%
• Length (mm): 43
• Width (mm): 20
• Height (mm): 12
• Weight (gm): 12

Pins

• IN+ input positive
• IN- input negative!
• OUT+ output positive
• OUT- output negative

Package Includes :

• 1 x XL6009 DC-DC Adjustable 5-35V Step-Up Boost Power Converter Regulator Module
