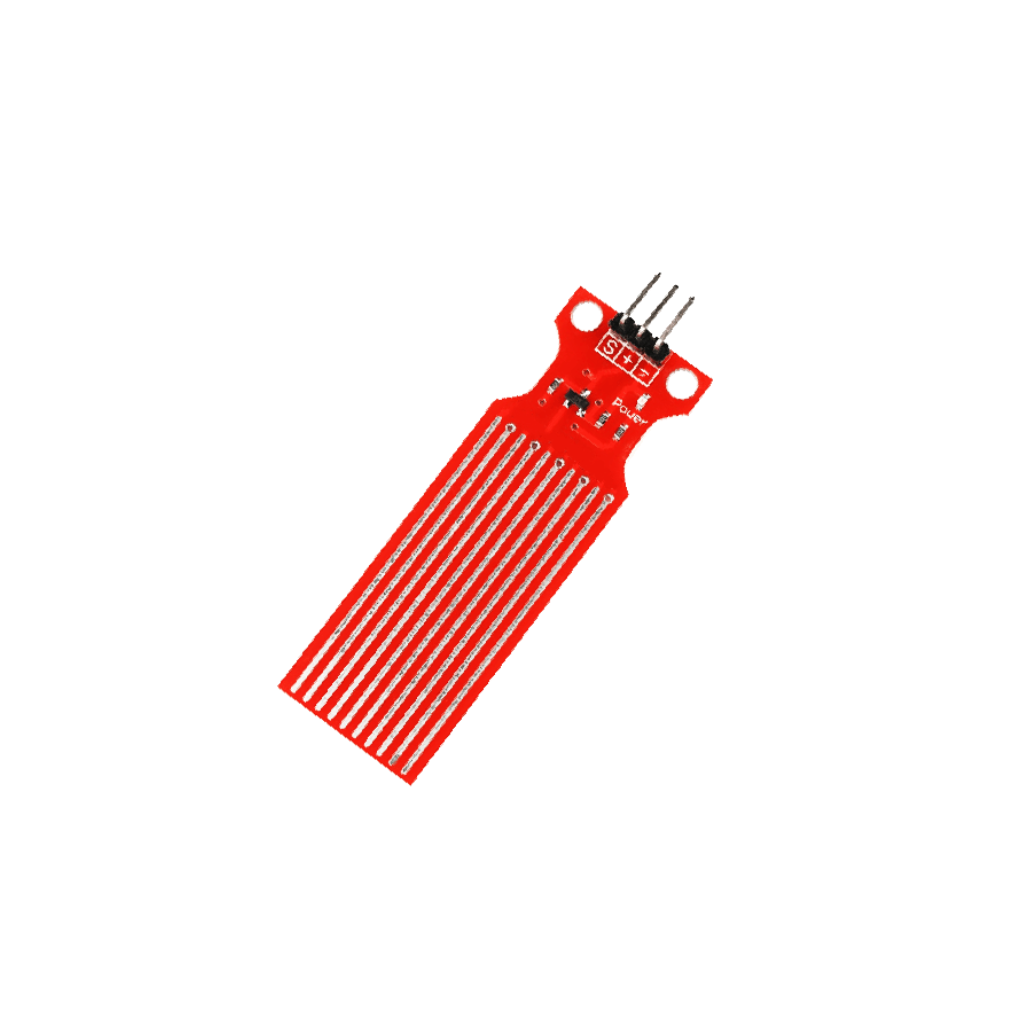

Water Level Depth Detection Sensor for Arduino
Couldn't load pickup availability
Water Level Depth Detection Sensor for Arduino
The Water Level Depth Detection Sensor for Arduino operates within a DC voltage range of 3-5V and consumes less than 20mA of current. This sensor utilizes analog output signals to measure water pressure, with a detection area of 40x16mm.
As an analog sensor, it produces varying output signals that correspond to different water pressure levels. Its operation is based on a series of exposed parallel wires that detect droplets or water volume, effectively determining the water level.
Offering simplicity and cost-effectiveness, this sensor reliably identifies high water levels or drops. It easily converts water levels into analog signals, allowing for direct reading by Arduino development boards and enabling effective level alarm functionalities.
Features
- Operating voltage: DC3-5V
- Operating current: less than 20mA
- Sensor Type: Analog
- Detection Area: 40mmx16mm
- Operating temperature: -10′-30′
- Humidity: 10% -90% non-condensing
Specification:
| Operating Voltage (VDC) | 3 ~ 5 |
|---|---|
| Max. Operating Current (mA) | 20 |
| Detecting Range | 40×16 mm |
| Operating Temperature (°C) | -10 to 30 |
| Humidity Range | 10% -90% non-condensing |
| Length (mm): | 60 |
| Width (mm): | 20 |
| Height (mm): | 1.5 |
| Weight (g): | 4 |
Package Includes
1 x Water Level Depth Detection Sensor
