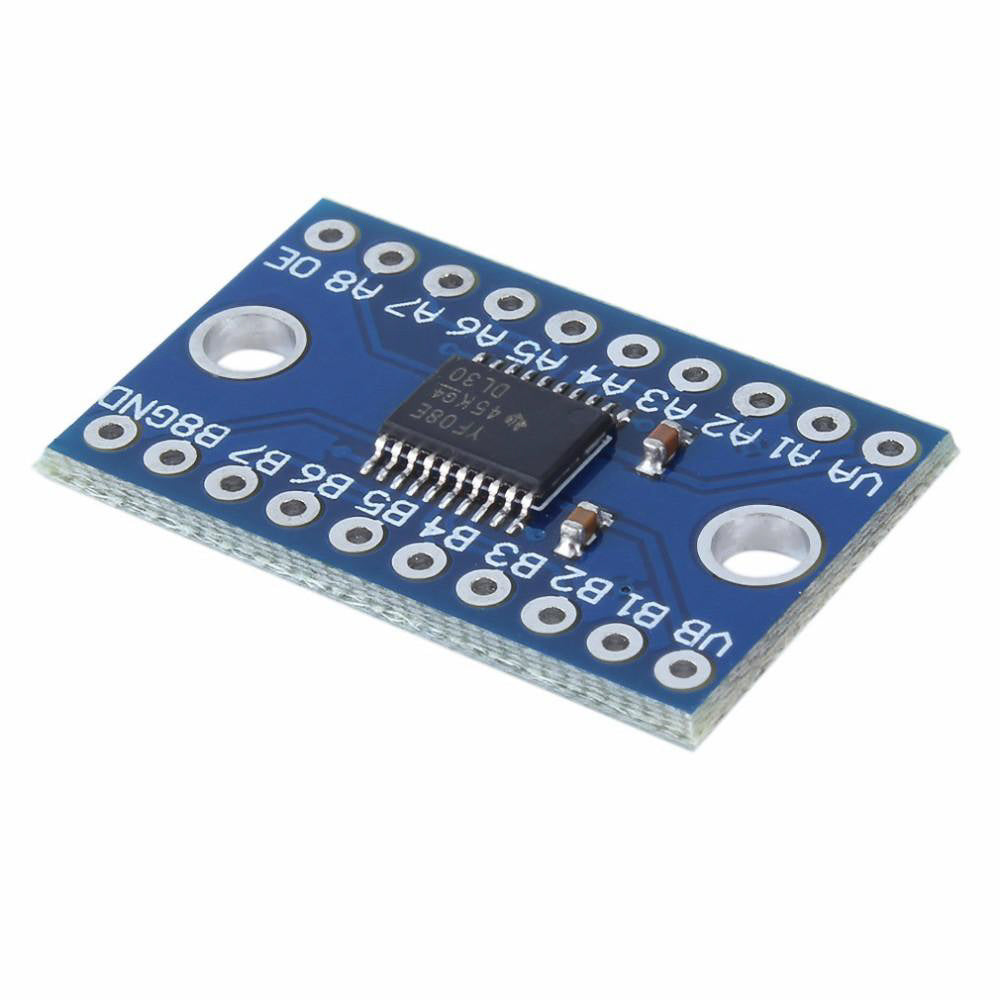

TXS0108E High Speed Full Duplex 8 Channel Logic Level Converter

Product Description

• Introducing the TXS0108E High-Speed Full-Duplex 8 Channel Logic Level Converter, designed to address the challenges of connecting devices with different logic voltage levels.
• This bi-directional converter facilitates seamless translation between 1.8V, 3.3V, and 5V logic levels, ensuring compatibility across a wide range of devices and systems.
• This module supports up to 8 pins on both the high and low sides, providing plenty of connectivity options for your projects.
• With compatibility for serial interfaces such as UART, IIC, and SPI, integration into your existing setup is straightforward.
• Featuring two separate configurable power-supply rails—VCCA and VCCB—this converter accommodates various supply voltages for bidirectional translation.
• VCCA accepts voltages between 1.2V and 3.6V, while VCCB accommodates voltages from 1.65V to 5.5V.
• Enjoy smooth and reliable logic level conversion without signal inversion, ensuring accurate translation between different voltage levels.
• Eliminate compatibility issues and confidently connect your devices with the TXS0108E Logic Level Converter.

Features:

• Wide Compatibility: Supports logic level conversion between 1.8V, 3.3V, and 5V voltage levels, providing versatile compatibility for a range of devices.
• 8-Channel Conversion: Each level converter can handle up to 8 pins on both the high and low sides, offering ample connectivity options for your projects.
• Serial Interface Compatibility: Equipped with a serial communication interface compatible with UART/IIC/SPI ports, facilitating easy integration with various communication protocols.
• Dual Power-Supply Rails: Utilizes two separate configurable power-supply rails, with VCCA accepting voltages between 1.2V and 3.6V, and VCCB accepting voltages between 1.65V and 5.5V.
• Bidirectional Translation: Enables bidirectional translation between different voltage nodes, supporting seamless communication between devices with varying logic levels.

Specifications:

• Ideal for interfacing MCUs and SD cards
• Perfect for connecting MCUs with serial devices
• Widely used in MCU and 5V/3V module communication scenarios
• Upgrade your project’s compatibility and connectivity with our TXS0108E High-Speed Full-Duplex 8 Channel Logic Level Converter. Ensure seamless communication between devices with different logic voltage levels and unlock new possibilities for your applications.

Package Includes

• 1 x TXS0108E High-Speed Full-Duplex 8 Channel Logic Level Converter
