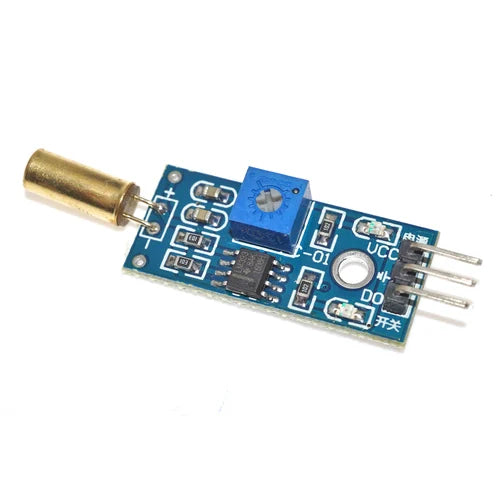

SW520D Tilt Sensor Module
Introducing the SW520D Tilt Sensor Module, a highly sensitive and reliable device designed to detect changes in body angle with precision. This module features the SW-520D sensor switch, renowned for its accuracy and durability. With the addition of an LM393 comparator chip, it delivers clean output signals with excellent waveform characteristics and can drive currents exceeding 15mA. Ideal for applications requiring precise tilt detection.
Features:
- High Precision Sensing: Capable of detecting subtle changes in body angle, making it ideal for applications requiring precise tilt detection.
- Digital Output: Outputs digital signals (0 and 1) that can be easily interpreted by microcontrollers, enabling straightforward angle detection and processing.
- Adjustable Sensitivity: The sensitivity of the signal detection can be fine-tuned using the integrated potentiometer, allowing customization based on specific requirements.
- Versatile Compatibility: Operates at both 5V and 3.3V, ensuring compatibility with a wide range of microcontroller systems and voltage levels.
- Easy Installation: Features a fixed bolt hole for convenient and secure mounting, facilitating hassle-free integration into various projects and setups.
- Visual Indicators: Includes power (red) and digital switch output (green) indicators for quick status monitoring and troubleshooting.
- Compact Design: Compact PCB size (3.2cm x 1.4cm) makes it suitable for space-constrained applications without compromising functionality.
Applications:
- Robotics: Enables robots to detect orientation changes and adjust their movements accordingly.
- Security Systems: Used to trigger alarms or surveillance cameras upon unauthorized movement or tampering.
- Automotive: Integrated into vehicle stability control systems to monitor tilt and prevent rollovers.
- Industrial Machinery: Employed for tilt detection in equipment to prevent accidents and ensure safe operation.
- Consumer Electronics: Incorporated into gaming controllers or handheld devices for tilt-based input control.
Enhance your projects with precise tilt detection capabilities using the SW520D Tilt Sensor Module. Whether you’re a hobbyist, student, or professional, this module offers reliability and versatility for a wide range of applications.
Specification:
| Specification | Details |
|---|---|
| IC Chip | LM393 |
| Operating Voltage | 5V / 3.3V |
| PCB Size | 3.2cm x 1.4cm |
| Output Format | Digital switching outputs (0 and 1) |
| Signal Detection Sensitivity | Adjustable using a potentiometer |
| Output Driving Ability | More than 15mA |
| Sensor Type | SW-520D Tilt Vibration Sensor |
| Adjustable Sensitivity | Yes (via blue digital potentiometer adjustment) |
| Mounting | Fixed bolt hole for easy installation |
| Indicators | Power indicator (red) and digital switch output indicator (green) |
Package Includes:
1 X SW-520D Tilt Vibration Sensor Module
