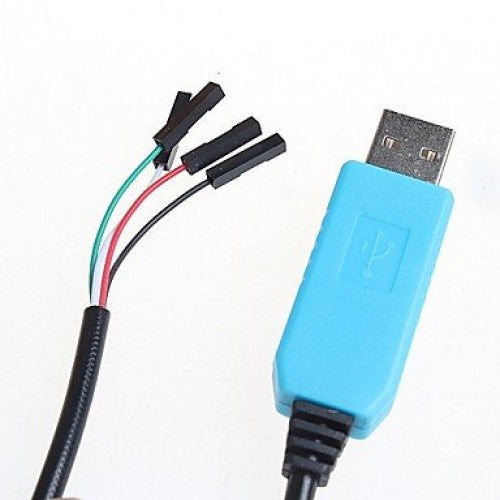

PL2303 USB to TTL Converter RS232 Module Cable
Couldn't load pickup availability
USB to TTL The PL2303 TA Download Cable is an essential USB to TTL/RS232 module that simplifies the process of connecting serial devices to computers. It is perfect for tasks involving data transfer between microcontrollers, routers, and other serial devices with seamless USB to serial communication. This USB to TTL cable offers a pragmatic solution, enabling advanced interfacing with devices such as set-top boxes and GPS units.
Key Features - USB to TTL Converter
- Built-in TTL COM PC-PL2303HX Chip.
- Standard USB type and TTL 4 pin connector.
- Available for Linux, Mac, Windows.
- Cable Length: 1M
- Net Weight: 30gm
- Simple and reliable USB to TTL/RS232 conversion.
- USB 2.0 full-speed compatible, ensuring fast data transfers.
- Plug-and-play functionality, eliminating the need for additional power supply.
- Status LEDs for indicating power and data transfer activity.
Applications
This versatile TTL cable can interface with devices such as microcontrollers and Raspberry Pi, suitable for tasks like programming and debugging. It facilitates easy connection of GPS units and routers to PCs, ensuring smooth data transfer. Additionally, a USB TTL adapter is key for media interfaces and healthcare applications.
Technical Specifications
| Product Specification | Value |
| Model Type | RS232 Module |
| Weight (g) | 30 |
| Cable Length (m) | 1 |
| Shipping Weight | 33 |
| Shipping Dimensions | 10 × 7 × 3 |
| USB Protocol | USB 2.0 standard |
| Chipset | PL2303 |
| Baud Rate | Variable, supports standard baud rates up to 115200 bps |
| Connector Type | USB Type-A to TTL |
| Compatibility | Supports most operating systems with virtual COM port drivers |
How to Use - USB to TTL Converter
- Connect the USB to your PC and attach the TTL end to your device's RX/TX pins.
- Red wire provides power (+5V), black is GND, white is RXD, and green is TXD.
- Install needed drivers on your OS for device recognition if required.
- Use a terminal program and select appropriate COM port for communication.
- Configure terminal software with desired baud rate matching the serial device.
- Monitor communication through status LEDs indicating data activity.
Package Includes
PL2303 USB to TTL Converter RS232 Module Cable x 1
