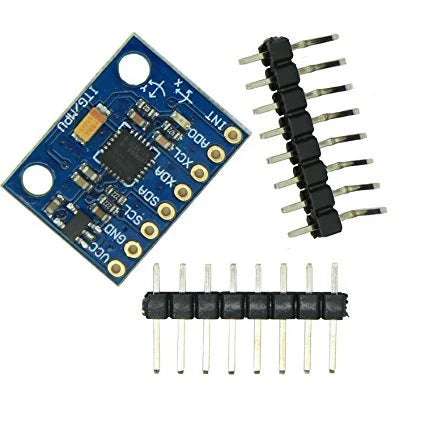

MPU-6050 3-Axis Accelerometer and Gyro Sensor Module
The MPU-6050 Module is a versatile sensor that combines a 3-axis accelerometer and a 3-axis gyroscope, making it essential for measuring motion-related parameters such as velocity, acceleration, displacement, and orientation. It features a high-precision 16-bit ADC (Analog-to-Digital Converter) for accurate data collection.
One of its standout features is the onboard Digital Motion Processor (DMP), which can execute complex 9-axis motion fusion algorithms. This capability offloads demanding data processing tasks from the microcontroller, enhancing overall system efficiency.
At its core, the MPU-6050 integrates motion processing technology by combining both sensors onto a single chip. The DMP allows it to perform advanced motion fusion, delivering comprehensive insights into motion dynamics.
The MPU-6050 3-axis accelerometer features eight pins for connectivity:
1. VCC and GND : Power supply pins connected to +5V and ground, respectively.
2. SCL (Serial Clock Pin) : Provides clock pulses for I2C communication.
3. SDA (Serial Data Pin) : Facilitates data transmission via I2C communication.
4. XDA and XCL (Auxiliary Serial Clock and Data Pins) : Additional pins for optional use, which can either remain idle or be utilized for interfacing with other I2C modules.
5. AD0: Address select pin, allowing multiple MPU-6050 modules to operate within the same circuit, each with a distinct address.
6. INT: Digital output interrupt pin, which signals the microcontroller when motion-related events occur.
The MPU-6050 Module, with its compact design and extensive features, provides an effective solution for motion sensing applications in diverse fields. Its integration of advanced technology and versatile connectivity options makes it an essential component for projects that require precise motion tracking and analysis.
Features
- Chip built-in 16bit AD converter, 16-bit data output.
- I2C Digital-output of 6 or 9-axis Motion Fusion data in rotation matrix, quaternion, Euler Angle, or raw data format.
- Selectable Solder Jumpers on CLK, FSYNC, and AD0.
- Digital Motion Processing™ (DMP™) engine offloads complex Motion Fusion, sensor timing synchronization, and gesture detection.
- Embedded algorithms for run-time bias and compass calibration. No user intervention required.
- Temperature rise: <80K
Specification:
| Driver IC | MPU-6050 |
|---|---|
| Operating Voltage (VDC) | 3 ~ 5 |
| Communication | I2C Protocol |
| Gyro range(°/s) | ± 250, 500, 1000, 2000 |
| Acceleration range(g) | ± 2 ± 4 ± 8 ± 16 |
| Length (mm): | 20 |
| Width (mm): | 16 |
Package Includes
- 1 x MPU-6050 Module
- 1 x Burg connector Pins (Right angle).
- 1 x Burg connector Pins (Straight).
