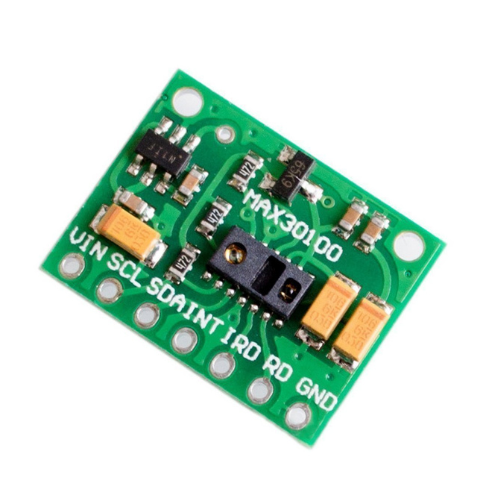

MAX30100 Pulse Oximeter Heart Rate Sensor Module
Couldn't load pickup availability
MAX30100 Pulse Oximeter Heart Rate Sensor Module is an integrated pulse oximeter and heart-rate monitor sensor solution. It’s an optical sensor that derives its readings from emitting two wavelengths of light from two LEDs – a red and an infrared one – then measuring the absorbance of pulsing blood through a photodetector. This particular LED colour combination is optimized for reading the data through the tip of one’s finger.
It is fully configurable through software registers and the digital output data is stored in a 16-deep FIFO within the device. It has an I2C digital interface to communicate with a host microcontroller.
The pulse oximetry subsystem in MAX30100 sensor consists of ambient light cancellation (ALC), 16-bit sigma delta ADC, and proprietary discrete time filter. It has an ultra-low-power operation which makes it ideal for battery operated systems. MAX30100 operates on a supply in the range of 1.8 to 3.3V. It can be used in wearable devices, fitness assistant devices, medical monitoring devices, etc. compatible with Arduino.
The MAX30100 operates from 1.8V and 3.3V power supplies and can be powered down through software with negligible standby current, permitting the power supply to remain connected at all times.
Features :
- It is an integrated pulse oximetry and heart rate monitor sensor solution.
- Integrated LEDs, Photo Sensor, and High-Performance Analog Front -End
- Complete Pulse Oximeter and Heart-Rate Sensor Solution Simplifies Design
- Measures absorbance of pulsing blood
- I2C interface plus INT pin
- Ultra-Low-Power Operation Increases Battery Life for Wearable Devices
- Programmable Sample Rate and LED Current for Power Savings
- Ultra-Low Shutdown Current (0.7µA, typ)
- Advanced Functionality Improves Measurement Performance
- High SNR Provides Robust Motion Artifact Resilience
- Integrated Ambient Light Cancellation
- High Sample Rate Capability
- Fast Data Output Capability
Specifications:
- Working voltage: 1.8 ~ 5.5V
- Shutdown Current: 0.7µA
- Length (mm): 19
- Width (mm): 14.5
- Height (mm): 3
- Weight (gm): 2
- Color: Green
Pin Configurations:
- 1: VIN: Input voltage (1.8V to 5.5V)
- 2: SCL: IIC-SCL
- 3: SDA: IIC-SDA
- 4: INT: MAX30100INT
- 5: IRD: MAX30100 IR_DRV
- 6: RD: MAX30100 R_DRV
- 7: GND: Ground
Applications :
- Fitness Assistant Devices
- Medical Monitoring Devices
- Wearable Devices
Package Includes:
- 1 x MAX30100 Pulse Oximeter Sensor Module
