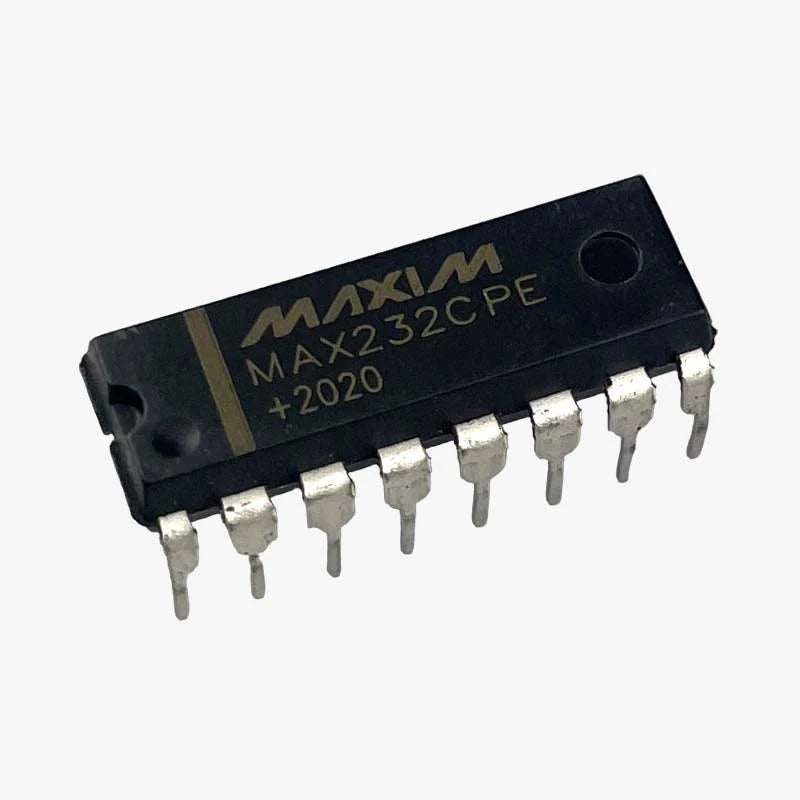

MAX232 Dual Driver/Receiver IC DIP-16 Package
Couldn't load pickup availability
The MAX232E is from the family of RS-232 and V.28 transceivers with high ±15kV ESD HBM protection and integrated charge pump circuitry for single +5V supply operation. The various combinations of features are outlined in the Selector Guide. The drivers and receivers for all ten devices meet all EIA/TIA232E and CCITT V.28 specifications at data rates up to 120kbps when loaded. The MAX232E come in 16-pin TSSOP, narrow SO, wide SO, and DIP packages.
Features:-
- Saves Board Space
- Integrated High ±15kV HBM ESD Protection
- Integrated Charge Pump Circuitry-Eliminates the Need for a Bipolar ±12V Supply, Enables Single Supply Operation From +5V Supply
Specification:-
| Parameters | Value |
| No. Of RS-232 Drivers | 2 |
| No. Of RS-232 Receivers | 2 |
| Receivers Active In Shutdown | 0 |
| No. Of External Capacitors (µf) | 4(1) |
| Low-Power Shutdown | No |
| TTL Tristate | No |
