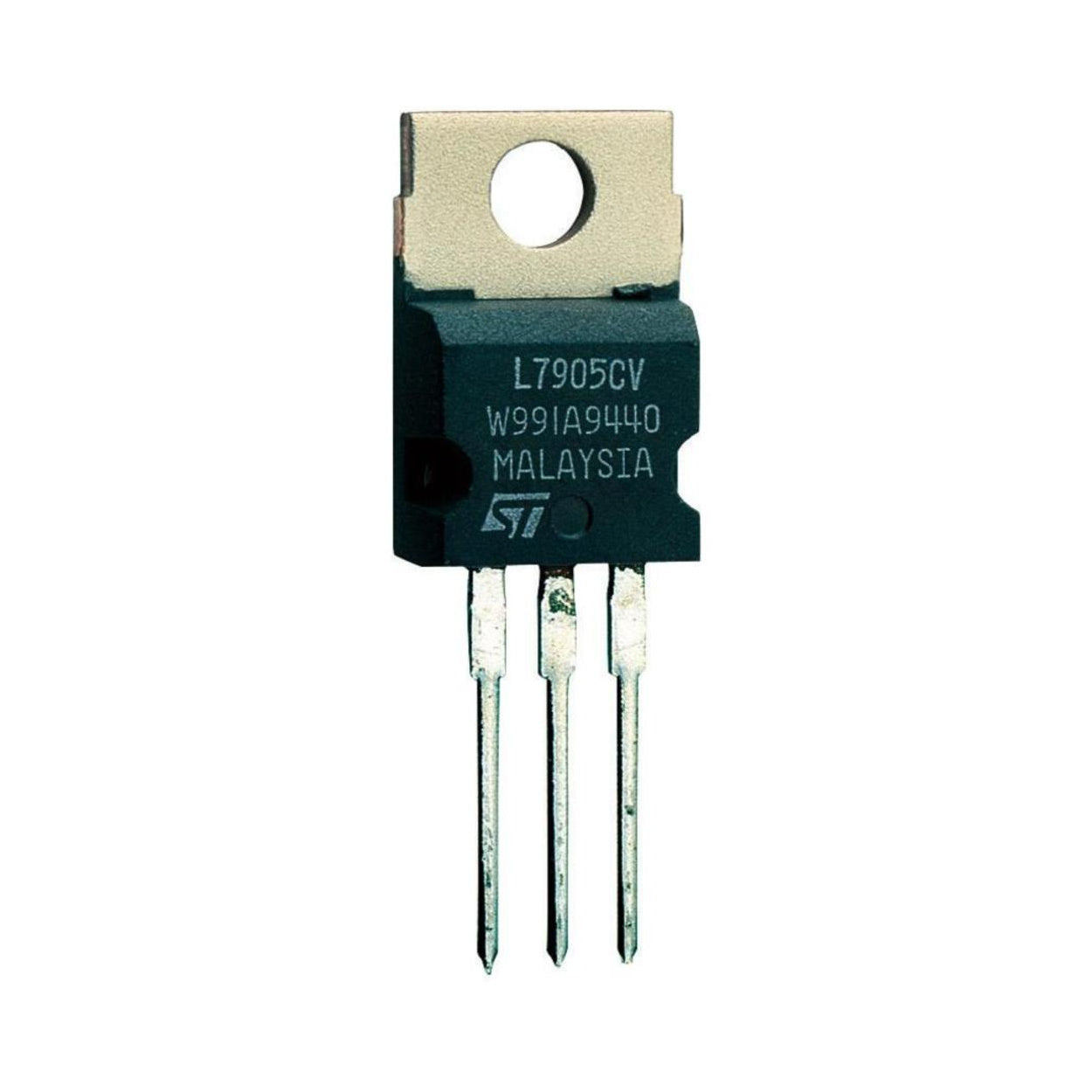

LM7905 IC - 5V Negative Voltage Regulator IC
Couldn't load pickup availability
The LM7905 series of three terminal negative regulators are available in TO- IC Data Sheetnd with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shut down and safe operating area protection, making it essentially indestructible.
Features:-
- Output Current in Excess of 1A
- Output Voltages of -5, -6, -8 , -9, -10, -12, -15, -18 and -24V
- Internal Thermal Overload Protection
- Short Circuit Protection
- Output Transistor Safe Operating Area Compensation
Specification:-
| Symbol | Parameter | Min | Type | Max | Units |
| VO | Output Voltage | -4.8 | -5 | -5.2 | V |
| Regline | Line Regulation | 35 | 100 | m V | |
| Regload | Load Regulation | 10 | 100 | m V | |
| IQ | Quiescent Current | 3 | 6 | °C | |
| RR | Ripple Rejection | 54 | 60 | d B |
