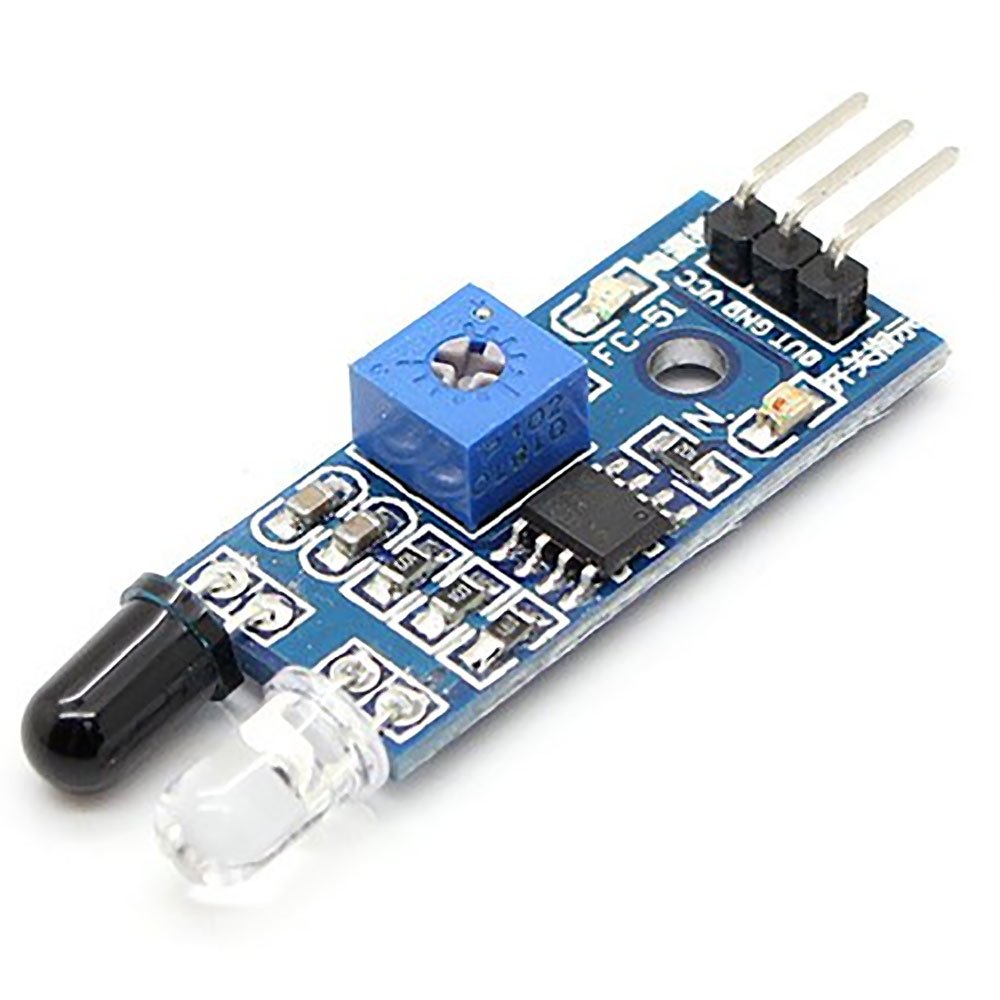

Infrared Obstacle Avoidance IR Sensor Module

The Infrared Obstacle Avoidance IR Sensor Module has great adaptive capability of the ambient light. It has a pair of infrared transmitter and receiver tubes. The infrared emitting tube emits a certain frequency. When it encounters an obstacle in the detection direction (reflecting surface), the infrared is reflected back to the receiver tube. After processing by a comparator circuit, the green LED lights up. At the same time, the signal output will output a digital signal (a low-level signal).

The detection distance can be adjusted using the potentiometer knob. The effective distance range is 2 to 10 cm. The working voltage is 3.3V-5V. The detection range of the IR sensor can be adjusted by the potentiometer. It has little interference, is easy to assemble, and easy to use.

It can be widely used for robot obstacle avoidance, obstacle avoidance cars, assembly line counting, black-and-white line tracking, and many other occasions.

Features :

• Easy to assemble and use
• Onboard detection indication
• Effective distance range of 2cm to 80cm
• A preset knob to fine-tune distance range
• There is an obstacle, the green indicator light on the circuit board.
• When the module detects obstacles in front of the signal, the circuit board green indicator light level, while the OUT port continuous output low-level signals, the module detects a distance of 2 ~ 10cm, detection angle 35 °, the detection distance can be potential adjustment with adjustment potentiometer clockwise, the increase in detection distance; counterclockwise adjustment potentiometer, the detection distance decreased.
• the sensor active infrared reflection detection, target reflectivity and shape of the detection distance of the key. The black minimum detection range, white maximum; small area object distance is small, a large area from the large.
• The sensor module output port OUT can be directly connected with the microcontroller IO port can also be driven directly to a 5V relay;
• 3-5V DC power supply module can be used. When the power is turned on, the red power LED is lit.
• With the screw holes of 3mm, easy to install.

Specifications:

• Main Chip: LM393
• Operating Voltage Range: 3.6~5 VDC
• Average Current Consumption (mA): 0.06
• Detection Angle: 35°
• Distance Measuring Range: 2 ~ 30cm
• Dimensions (mm) LxWxH: 31 x 15 x 8
• Weight (gm): 5

Interface:

• VCC external 3.3V-5V voltage (can be directly connected with the a 5v microcontroller and 3.3v microcontroller),
• GND external GND,
• OUT board digital output interface (0 and 1).

Package Includes:

• 1 x IR Distance Sensor Module
