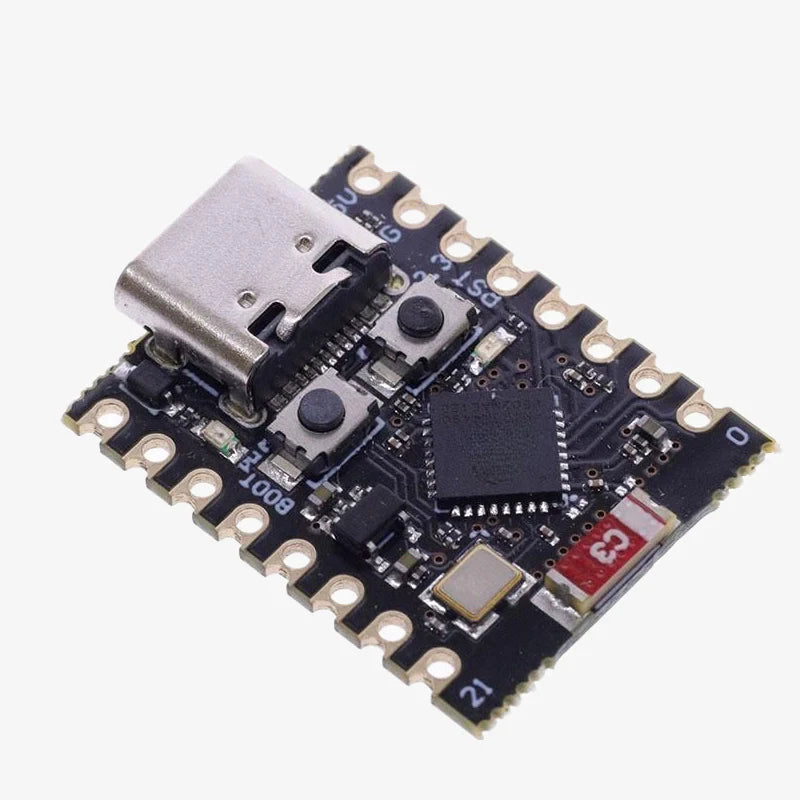

ESP32-C3 Super Mini Development Board Soldered Headers
Couldn't load pickup availability
The ESP32-C3 Super Mini Development Board is a compact and powerful development board based on the ESP32-C3 RISC-V microcontroller, featuring integrated Wi-Fi (802.11 b/g/n) and Bluetooth 5 (BLE) connectivity for robust and secure IoT applications.
ESP32-C3 Super Mini Development Board comes with its ultra-small, breadboard-friendly design and USB Type-C interface, this board is ideal for rapid prototyping, embedded projects, and wireless device control. It boasts low power consumption, a range of digital and analog I/O pins, and compatibility with Arduino IDE, ESP-IDF, and MicroPython, making it perfect for makers, students, and professionals working on smart devices, automation, and portable solutions.
Note: Programming related issue are not cover under return/replacement and you need to troubleshoot at your end.
Features:
- ESP32-C3 single-core 32-bit RISC-V processor, up to 160 MHz.
- Integrated IEEE 802.11 b/g/n Wi-Fi and Bluetooth 5.0 Low Energy (BLE) connectivity.
- Ultra-compact, breadboard-friendly Super Mini form factor.
- Multiple digital I/O and analog input pins, PWM, ADC, UART, SPI, I2C support.
- 4 MB onboard flash memory and 400 KB SRAM.
- USB Type-C interface for easy power and programming.
- Low power consumption with deep sleep support, ideal for battery-powered applications.
- User-controllable onboard LED.
- Compatible with Arduino IDE, PlatformIO, ESP-IDF, and MicroPython.
- Integrated USB-to-serial converter for seamless uploading.
- Onboard voltage regulator, supports 3.3V—5V input.
Specifications:
- Microcontroller: ESP32-C3, 32-bit RISC-V
- Core: Single-core, up to 160 MHz
- Flash Memory: 4 MB
- SRAM: 400 KB
- Wi-Fi: IEEE 802.11 b/g/n, 2.4 GHz
- Bluetooth: BLE 5.0
- Operating Voltage: 3.3V
- Input Voltage: 3.3V, 5V (via USB-C)
- GPIO: Multiple digital I/O, PWM, ADC
- Analog Inputs: Up to 6
- Dimensions: Approx. 22.5 mm x 18 mm
- USB Interface: Type-C
- Package: Soldered headers
- Power Consumption: Ultra-low (deep sleep: ~43μA)
- Onboard LED: User programmable (GPIO8)
Application:
- IoT (Internet of Things) devices and sensor nodes
- Smart home automation systems
- Wearable technology and fitness trackers
- Wireless controllers and BLE devices
- Educational robotics and embedded system learning
- Prototyping and rapid product development for makers and engineers.
Package Includes:
- 1 x ESP32-C3 Super Mini Development Board with Unsoldered Headers.
