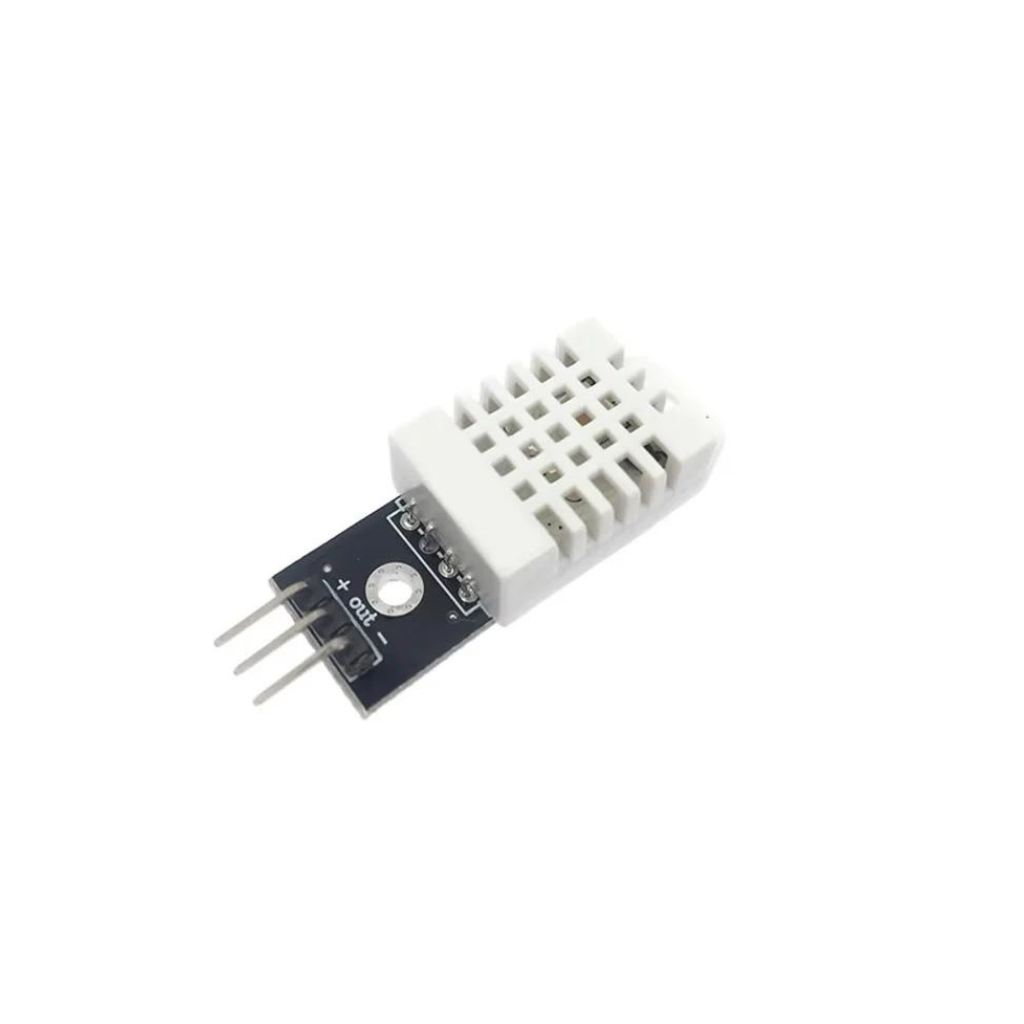

DHT22 AM2302 Digital Temperature & Humidity Sensor Module

DHT22 – Temperature and Humidity Sensor Module

The DHT22 is a high-precision digital temperature and humidity sensor that combines both temperature and humidity sensing in a single module. It features a capacitive humidity sensing element and a high-accuracy temperature sensor, both connected to a powerful 8-bit microcontroller. The sensor provides calibrated digital signal output, ensuring excellent long-term stability and reliability for a wide range of applications.

With its advanced digital signal processing and dedicated sensing technology, the DHT22 delivers fast response times, high accuracy, and strong resistance to interference, making it a highly reliable and cost-effective solution. The sensor uses a standard single-bus interface, simplifying system integration and making setup quick and easy.

Compact in size and low in power consumption, the DHT22 offers a signal transmission distance of up to 20 meters, making it suitable for both basic and demanding applications. It is a cost-effective alternative to higher-priced sensors like the SHT10, offering similar precision.

Ideal for measuring temperature and humidity in environments with high accuracy requirements, the DHT22 excels in reliability and stability. When used with a special Arduino sensor expansion board, it allows for seamless integration and interactive effects based on temperature and humidity data.

The DHT22 is designed to be used with an analog sensor interface. The analog output can be converted to digital, allowing it to be used on digital ports without occupying the Arduino’s original digital pins.

Note: The color of connecting wire may vary. You may get any color while shipping.

Features

1. Full range temperature compensated
2. Relative humidity and temperature measurement
3. Calibrated digital signal
4. Outstanding long-term stability

Specifications:-

1. Supply voltage: 5V
2. Temperature range:-40-80℃ resolution0.1℃ error <±0.5℃
3. Humidity range:0-100%RH resolution0.1%RH error±2%RH

Pin Description:-

1. Pin 1:     Power +Ve (5V Max wrt. GND)
2. Pin 2:     Digital I/O interface connected to microcontroller
3. Pin 3:     Power Ground or Power –Ve

Package Includes

1 x DHT22 – Temperature and Humidity Sensor Module
