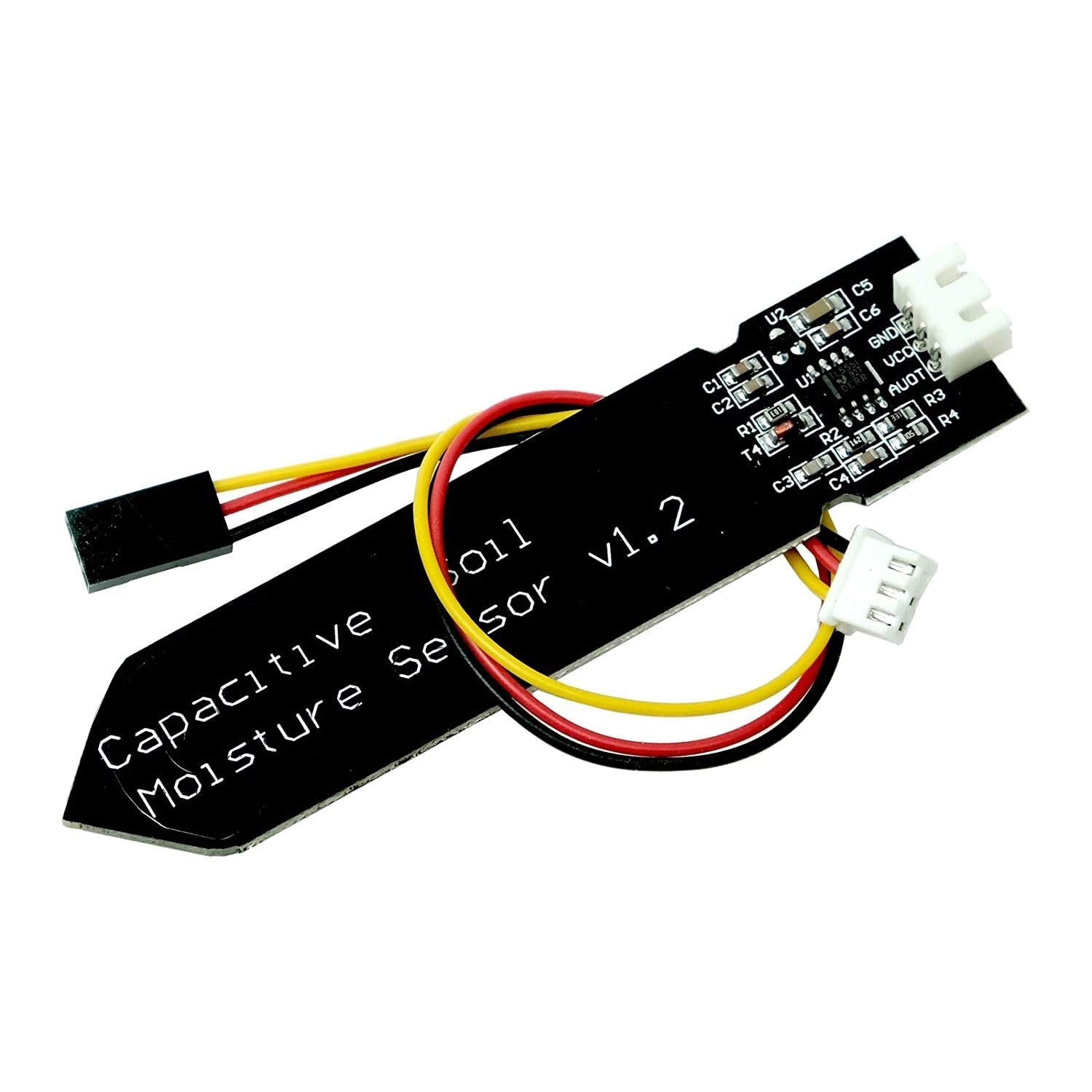

Capacitive Soil Moisture Sensor
Couldn't load pickup availability
Capacitive Soil Moisture Sensor
This soil moisture sensor uses capacitive sensing to measure soil moisture levels, offering a more durable and corrosion-resistant alternative to traditional resistive sensors. Simply insert it into the soil near your plants, and you can display real-time moisture data to your friends!
The module includes a voltage regulator, allowing it to operate within a voltage range of 3.3V to 5.5V, making it compatible with both 3.3V and 5V low-voltage microcontrollers. For use with a Raspberry Pi, an ADC converter is required.
This sensor also features a 3-pin “Gravity” interface, making it easy to connect to the Gravity I/O expansion shield for seamless integration into your projects.
Application
- Garden plants.
- Moisture detection
- Intelligent agriculture
Features
- Supports 3-Pin Gravity Sensor interface.
- Analog output
specification-
| Operating Voltage | 3.3 ~ 5.5 VDC |
|---|---|
| Output Voltage | 0 ~ 3.0VDC |
| Operating Current | 5mA |
| Interface | PH2.54-3P |
| Dimensions mm(LxWxH) | 98 x 23 x 4 |
| Weight (gm) | 15 |
| Shipping Weight | 0.018 kg |
| Shipping Dimensions | 12 × 4 × 1 cm |
Package Includes
- 1 x Capacitive Soil Moisture Sensor
