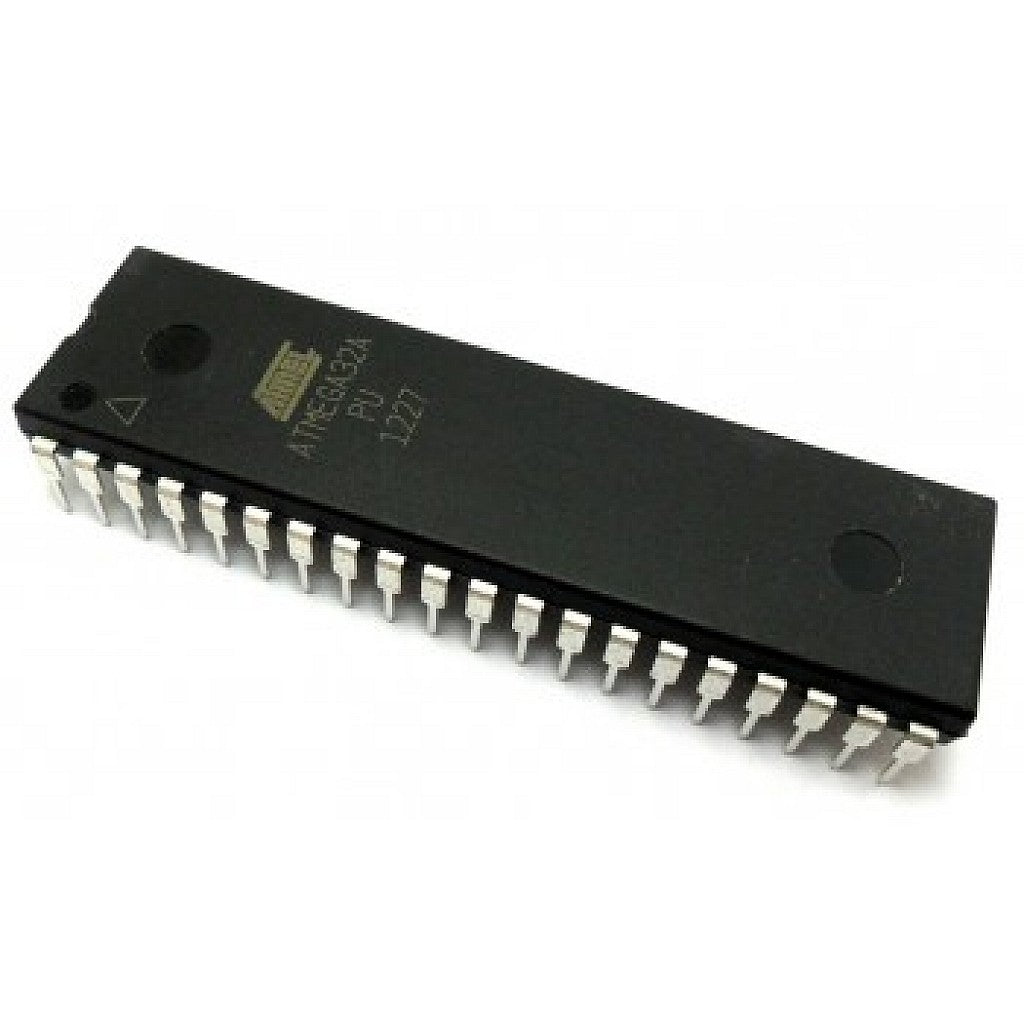

ATMega32A Microcontroller

ATMEGA32A is a 40 pin, 8-bit AVR RISC-based microcontroller from Atmel. It is a low power, high performance microcontroller featuring 32KB self-programming flash program memory, 2KB SRAM, 1KB EEPROM, 8 channel 10-bit A/D converter and JTAG interface for on-chip-debug. The device acheives 16 MIPS throughput at 16 Mhz at 2.7-5.5V operation.

By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, allowing you to optimize power consumption versus processing speed.

Features of ATmega32A Microcontroller:-

• Operating Voltage: 4.5V to 5V

• Advanced RISC Architecture.

• 32 x 8 General Purpose Working Registers.

• Fully Static Operation.

• Up to 16 MIPS Throughput at 16 MHz.

• On-chip 2-cycle Multiplier.

• High Endurance Non-volatile Memory segments.

• 32 Kbytes of In-System Self-programmable Flash program memory.

• 1024 Bytes EEPROM.

• 2 Kbyte Internal SRAM.

• Write/Erase Cycles: 10,000 Flash/100,000 EEPROM.

• Data retention: 20 years at 85°C/100 years at 25°C(1).

• Optional Boot Code Section with Independent Lock Bits.

• In-System Programming by On-chip Boot Program.

• True Read-While-Write Operation.

• Programming Lock for Software Security.

• Extensive On-chip Debug Support.

• 8 Single-ended Channels.

• Byte-oriented Two-wire Serial Interface.

• Programmable Serial USART.

• Master/Slave SPI Serial Interface.

• Programmable Watchdog Timer with Separate On-chip Oscillator.


Applications of ATmega32A Microcontroller:-

• Multiple DIY projects..

• Projects requiring more than logical control for devices.

• Microcontroller applications for multiple device interface/Control.
