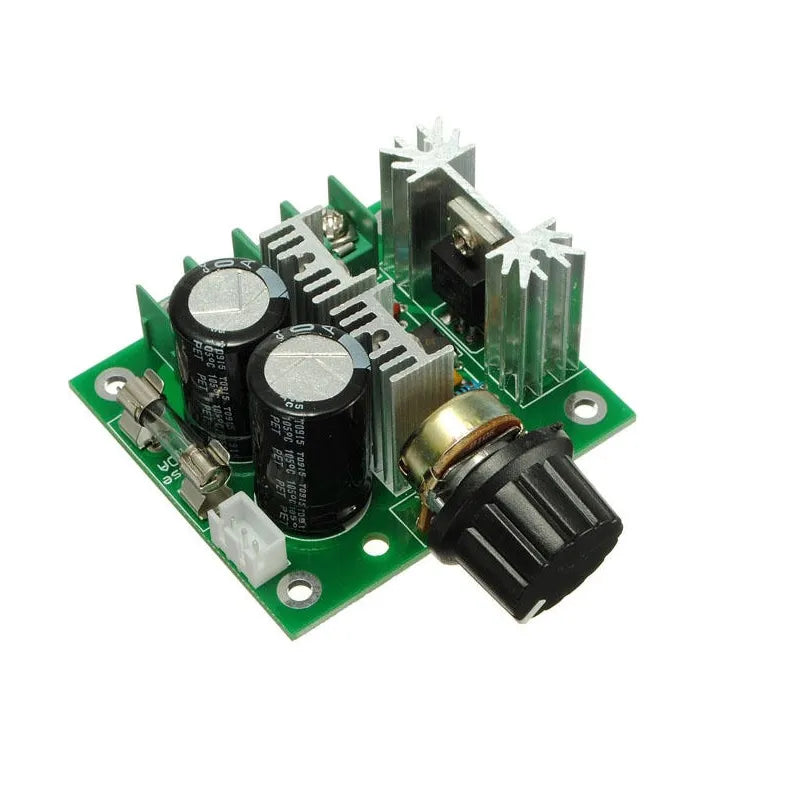

12V-40V 10A DC Motor PWM Speed Control Switch Governor
Vendor:
eBhoot Electronics
Availability:
In stock
Rs. 120.00
Days
:
Hours
:
Mins
:
secs
Couldn't load pickup availability
12V-40V 10A DC Motor PWM Speed Control Switch Governor
Rs. 120.00
The DC Motor Speed Controller allows controlling direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 8A to your DC motor or other DC load. The circuit also includes a 10A fuse, with the reverse connection of power supply and control voltage over-voltage protection function.
Note:
This can NOT be used to the BRUSHLESS motor. The controller is NOT reverse-polarity protected and will be damaged if it connects the supply voltage with the wrong polarity.
Features:-
- Control the speed of a DC motor with this controller.
- High efficiency, high torque, low heat generating.
- With reverse polarity protection, high current protection.
- Control voltage over-voltage protection function
- The overload and short circuit protecting current is 10A
- Working Voltage: DC 12V DC 40V.
- Control Power:0.01 400W.
- Static Current:0.02 A ( Standby ).
- PWM Duty Cycle:10% -100%.
Specifications:-
| Input supply voltage |
DC 12V-40V |
| The maximum output power |
400W |
| The maximum continuous output current |
8A |
| Static Current |
0.02 A ( Standby ) |
| PWM frequency |
13kHz |
| Material |
Plastic, metal |
| Duty Cycle adjustable |
10%-100% |
| The operation environment temperature: |
-20-40 |
| Dimension(cm) |
6*5.5*2.8 |
| Net weight |
69g |
Package Includes:
1 x 12V-40V10A DC Motor PWM Speed Control Switch Governor
