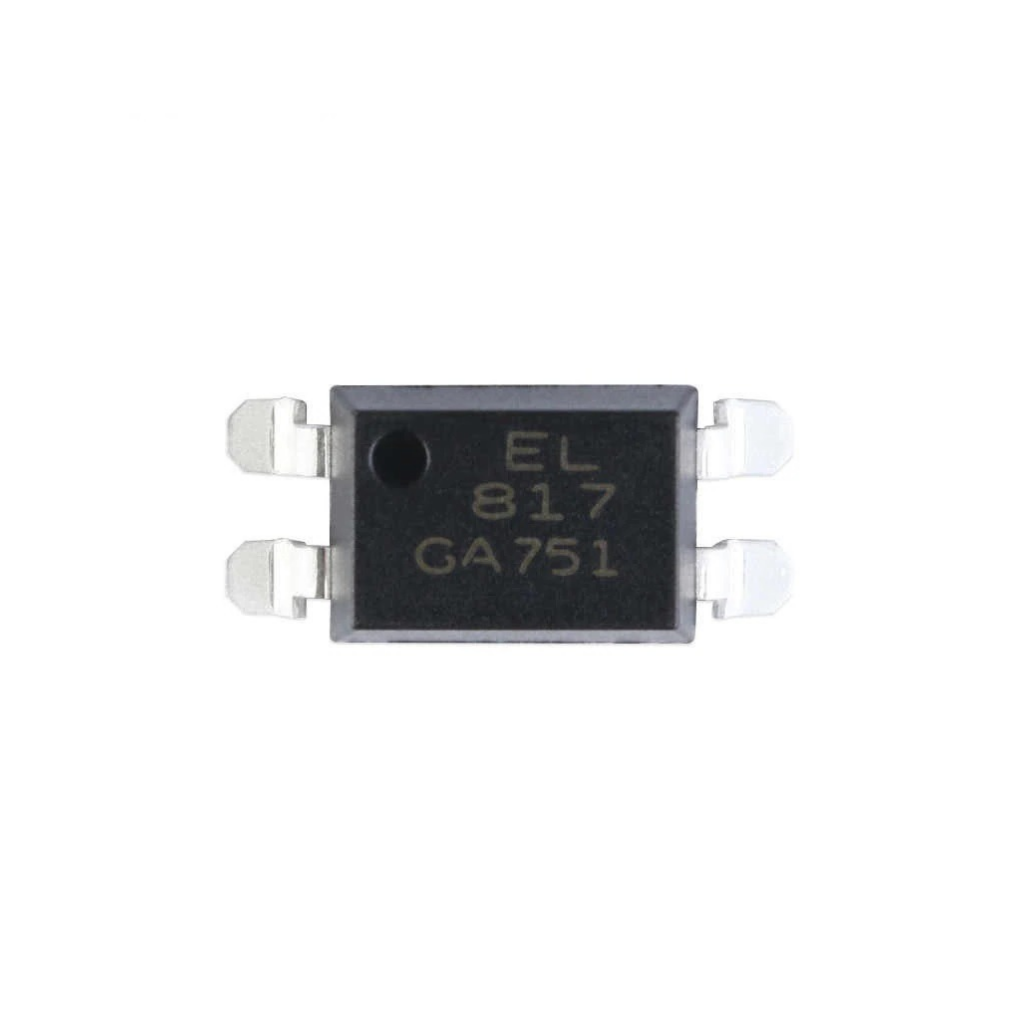

817 Transistor Output Optocoupler - SOP-4 SMD Package Pack of 10

The EL817 is a compact transistor output optocoupler IC designed to provide electrical isolation between input and output circuits. It integrates a high-efficiency infrared LED and a silicon phototransistor housed in a space-saving SOP-4 surface-mount package. Widely used in switching power supplies, microcontroller interfacing, signal isolation, and industrial control systems, the EL817 ensures noise immunity and circuit protection while maintaining reliable signal transmission.

Features of EL817 SMD Optocoupler:

1. Provides strong electrical isolation between input and output (typically 5kV isolation voltage)
2. Combines infrared LED and phototransistor in one package
3. Fast switching response and high current transfer ratio (CTR)
4. Ideal for signal transmission in noisy environments
5. SMD (SOP-4) form factor for compact PCB designs
6. RoHS compliant

Specifications of EL817 Optocoupler IC:

• Model: EL817
• Type: Optocoupler (Phototransistor output)
• Isolation Voltage: 5000Vrms
• CTR (Current Transfer Ratio): 50% to 600% (Depending on model variant and forward current)
• Forward Voltage (LED): 1.2V typical
• Collector-Emitter Voltage: 80V
• Output Current: 50mA max
• Package: SOP-4 – SMD
• Operating Temperature Range: -30°C to +100°C


Package Includes:

10× EL817 SMD Transistor Output Optocoupler – SOP-4 Package
